HVAC Components CTS Checks During AC Repair
Phoenix AC problems often involve electrical parts, motors, coils, refrigerant, airflow, ductwork, drains, filters, and controls. This page links to the main HVAC component pages CTS uses to explain common repair findings.
AC parts work as one system
An air conditioner is not one part. A thermostat call has to reach the equipment, electrical parts have to switch power, motors have to move air and heat, coils have to transfer heat, refrigerant has to move correctly, and drains have to carry water away.
- Electrical components such as capacitors, contactors, control boards, disconnects, and thermostats
- Mechanical components such as blower motors, condenser fan motors, compressors, and coils
- Airflow components such as ducts, registers, transitions, air filters, and coil surfaces
- Water-management components such as drain pans and condensate drain lines
- Component symptoms should be tested before parts or replacement are recommended
Local service
CTS handles urgent AC repair, AC replacement, commercial HVAC, maintenance, water heaters, and related service across the Phoenix area.
480-696-5033
A part name is not the same as a diagnosis
Warm air, weak airflow, humming, short cycling, water leaks, breaker trips, and noisy operation can overlap. The right repair depends on what the equipment is actually doing, how old it is, and whether the surrounding components are healthy.
Phoenix-area HVAC service
CTS works on residential equipment, rooftops, installs, and troubleshooting calls in Arizona conditions.
Serving Phoenix, Mesa, Chandler, Gilbert, Scottsdale, Tempe, Glendale, Surprise, Cave Creek, Queen Creek, Maricopa, and nearby communities.
Component Diagnostics
HVAC components fail in groups, not always alone
An AC problem is not always caused by one isolated part. A weak capacitor can stress a motor. A dirty coil can change refrigerant readings. Weak airflow can freeze an evaporator coil. A clogged drain can trip a float switch and shut the system off. A bad contactor can keep the outdoor unit from starting even when the thermostat is calling.
That is why CTS checks the system before replacing parts. The failed component matters, but the condition around that component matters too. A good AC diagnostic looks at what failed, what caused it to fail, and whether another part of the system is likely to create the same problem again.
HVAC Components
AC parts and airflow pages
These pages explain the parts, controls, airflow details, refrigerant conditions, and drain components that come up during Phoenix-area AC repair and maintenance calls.
Electrical and controls
Capacitors
Startup and run support for motors and compressors.
Contactors
High-voltage switching for outdoor equipment.
Control boards
Low-voltage logic, safety circuits, and equipment control.
Disconnects
Outdoor service power and safety shutoff points.
Thermostats
Temperature calls, settings, wiring, and comfort control.
Motors, coils, and refrigerant
Blower motors
Indoor airflow through filters, coils, ducts, and registers.
Condenser fan motors
Outdoor heat rejection and fan operation.
Compressors
The part that moves refrigerant through the cooling cycle.
Evaporator coils
Indoor heat transfer, condensation, freezing, and airflow.
Refrigerant
Charge, restrictions, leaks, and cooling performance.
Coil cleaning
Cleaning dirty coils that block airflow or heat transfer.
Airflow and water
Ducts
Air movement, leakage, restrictions, and hot rooms.
Registers
Supply grilles, return grilles, room airflow, and comfort.
Transitions
Connections between equipment, plenums, and ductwork.
Air filters
Filter restriction, dust loading, airflow, and coil protection.
Drain pans
Condensate collection, overflow risk, rust, and water safety.
Drain lines
Clogs, slope, cleanouts, traps, and AC water leaks.
Electrical Components
Electrical components CTS may check
Electrical parts control when the AC starts, how power reaches the equipment, and whether motors and compressors can run correctly. CTS may check the capacitor, contactor, disconnect, control board, thermostat signal, low-voltage wiring, high-voltage wiring, fuses, breakers, and visible signs of heat damage.
Electrical symptoms can overlap. A quiet outdoor unit, humming unit, fan that will not spin, breaker trip, burning smell, or short cycling system may all involve electrical components. Testing helps separate a bad part from a power problem, control issue, motor problem, or compressor startup issue.
Motors And Moving Parts
Motors and moving parts
Motors move air through the home and across the outdoor coil. The blower motor moves indoor air through the filter, evaporator coil, ductwork, and registers. The condenser fan motor moves outdoor air across the condenser coil to reject heat.
Motor problems can show up as weak airflow, no cooling, overheating, humming, grinding, squealing, AC noise, short cycling, or a fan that will not spin. CTS checks the motor, capacitor, wiring, wheel or blade condition, airflow path, and whether the motor is being overloaded by another problem.
Heat Transfer
Coils, refrigerant, and heat transfer
The AC system has to move heat. The evaporator coil absorbs heat from indoor air. The outdoor coil rejects heat outside. The compressor moves refrigerant through the system. Refrigerant readings, coil condition, airflow, and outdoor-unit operation all affect whether the system can cool correctly.
A warm-air or no-cooling call does not automatically mean the system needs refrigerant. Dirty coils, weak airflow, a frozen coil, bad condenser fan motor, compressor startup problem, metering issue, or electrical fault can all affect cooling. CTS checks the full cooling process before recommending refrigerant, coil cleaning, repair, or replacement.
Airflow Components
Airflow components matter as much as mechanical parts
Airflow is part of the AC system, not an afterthought. The blower, filter, return duct, supply ducts, registers, transitions, evaporator coil, and duct connections all affect how well the system cools the home.
Weak airflow can make the AC run longer, leave hot rooms, freeze the coil, reduce comfort, or make a good piece of equipment look like it is failing. CTS checks airflow before assuming the problem is refrigerant, compressor failure, or equipment size. In many homes, the air delivery system, ductwork, and sometimes FLIR thermal imaging are part of the repair conversation.
Drain Components
Drain pans, drain lines, and water safety
Cooling creates condensation. That water has to collect in the drain pan and leave through the condensate drain line. If the drain clogs, the pan rusts, the trap is wrong, the slope is poor, or a float switch trips, the system may leak water or shut off.
Water problems should not be ignored. A clogged drain or overflowing pan can damage ceilings, drywall, flooring, cabinets, or insulation. CTS checks the drain pan, drain line, trap, cleanout, float switch, and signs of freezing or airflow trouble when water is showing up around the system. If the issue fits, condensate drain cleaning may be part of the repair.
Controls And Safeties
Controls and safety devices can stop the system
Some AC problems happen because a safety device or control circuit stops the equipment. A thermostat may not be calling correctly. A float switch may shut the system off because water backed up. A control board may not send the right signal. A disconnect, fuse, low-voltage wire, or safety circuit may interrupt operation.
That can make the system look like it has a failed motor or compressor when the actual issue is a control or safety condition. CTS checks the signal path and thermostat problems before assuming the most expensive part has failed.
Symptom Overlap
The same symptom can point to different components
A homeowner usually notices the symptom first, not the failed part. That is normal. The symptom helps start the diagnostic, but testing matters before parts are replaced.
AC not cooling
May involve the thermostat, capacitor, contactor, compressor, refrigerant, dirty coil, airflow, or condenser fan motor.
AC will not turn on
May involve the thermostat, breaker, disconnect, control board, contactor, capacitor, float switch, or wiring.
Fan not spinning
May involve the capacitor, condenser fan motor, contactor, wiring, control signal, or obstruction.
Water leaking
May involve the drain pan, drain line, float switch, frozen coil, airflow, or dirty filter.
Short cycling
May involve thermostat settings, airflow, refrigerant, pressure controls, capacitor, contactor, compressor, or equipment sizing.
Burning smell
May involve wiring, contactor, capacitor, motor, control board, compressor startup, or a loose connection.
Diagnostic Process
What a component diagnostic may include
A component diagnostic depends on the symptom. CTS may check thermostat operation, low-voltage control signals, high-voltage power, breaker behavior, disconnect condition, capacitor readings, contactor operation, compressor startup, condenser fan operation, blower operation, filter condition, coil condition, refrigerant readings, drain safety switches, airflow, and temperature split.
Not every call needs every test. The point is to follow the symptom far enough to identify the cause. If one failed component points to a larger system issue, CTS can explain that before recommending a repair or replacement.
Repair Decisions
Repairing parts versus replacing equipment
Many AC component failures are repairable. A capacitor, contactor, thermostat, blower part, condenser fan motor, drain-line issue, dirty coil, or airflow restriction may be worth repairing when the rest of the system is in reasonable condition.
Replacement becomes a more serious conversation when the equipment is older, repair history is stacking up, the compressor is failing, the coil is leaking, airflow problems are severe, or the repair cost does not make sense for the age and condition of the system. CTS can explain the repair option and the replacement option when both are realistic.
Maintenance
Maintenance catches component problems early
AC maintenance can help find weak parts before they fail during the hottest part of summer. A maintenance visit may catch a dirty coil, weak capacitor, worn contactor, clogged drain, dirty filter, weak airflow, motor issue, or early signs of overheating.
Maintenance does not guarantee the system will never break. But it can reduce avoidable problems and give a better picture of whether the equipment is still in good condition or moving toward larger repairs.
Component Photos
Real HVAC parts used in repair conversations
Photos make it easier to explain what is being checked and why one symptom can involve several parts.

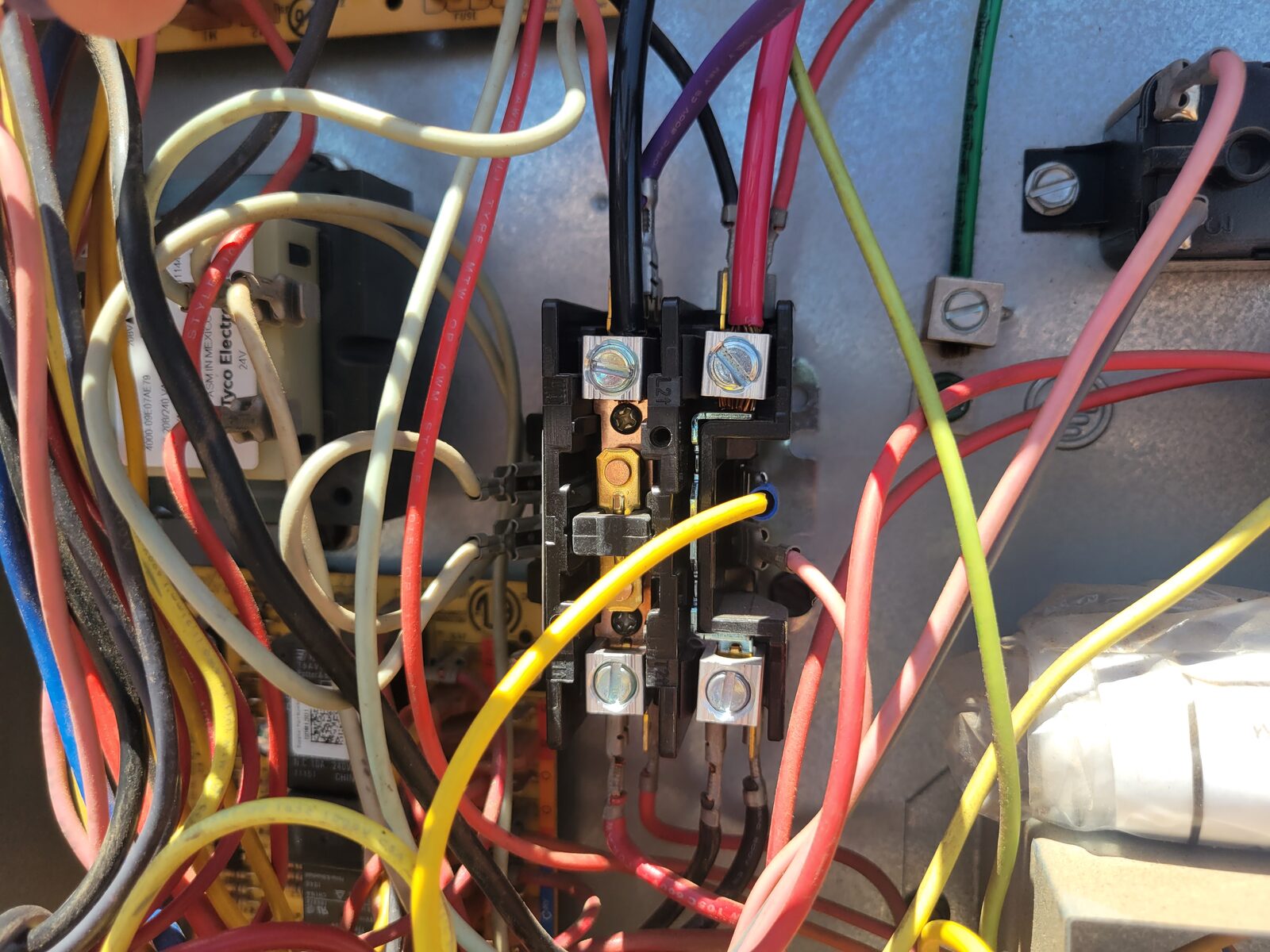

Electrical compartment
Capacitors, contactors, wiring, disconnects, and controls are often checked together during no-start, humming, breaker-trip, and burning-smell calls.
Capacitor and contactor testing
Startup components should be tested before replacing parts. A symptom may point to the capacitor, contactor, motor, compressor, or wiring.
Blower and indoor air path
The blower, filter, coil, drain pan, and duct connection all affect airflow and cooling.

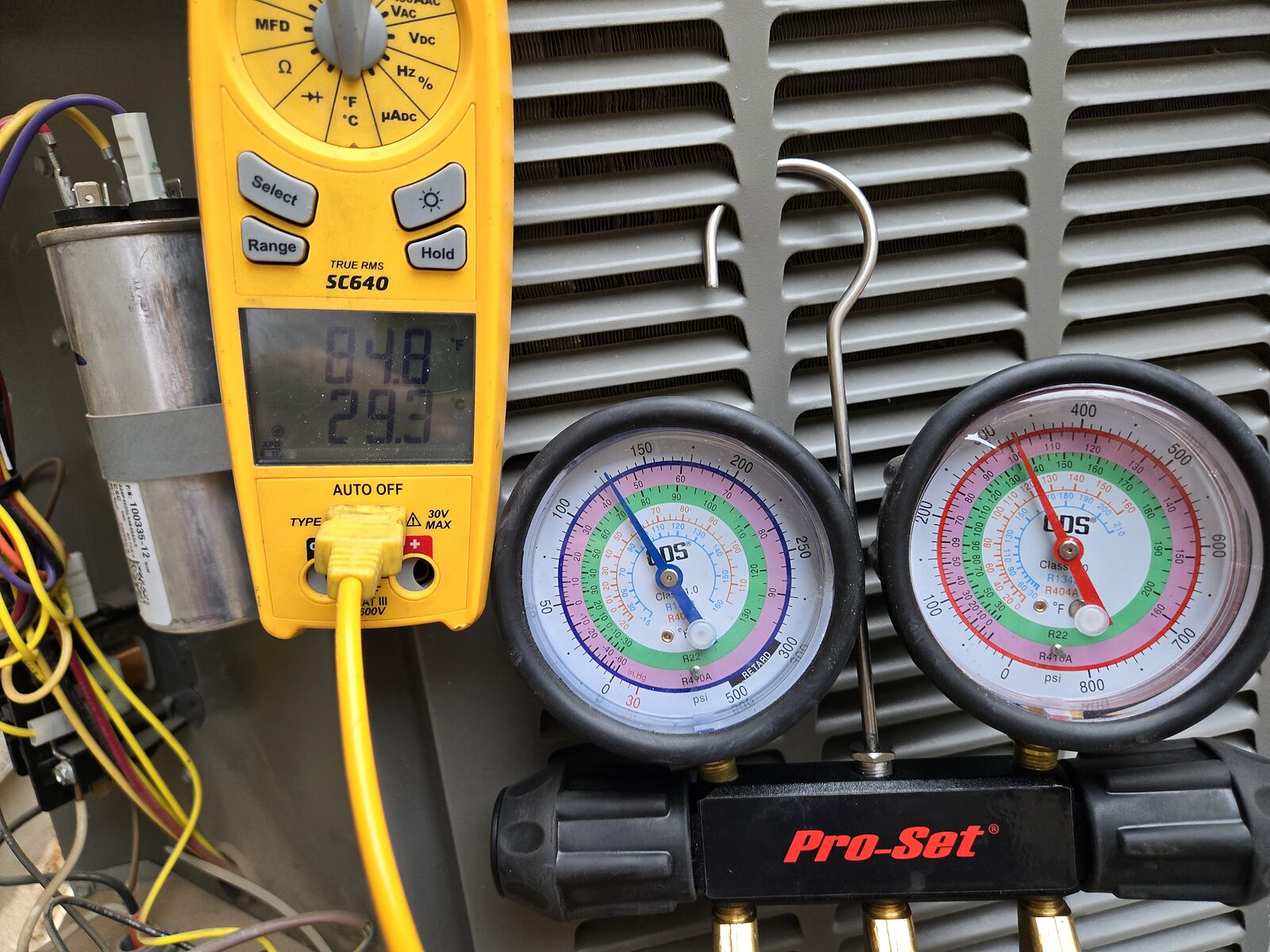

Coil and refrigerant diagnostics
Coils, refrigerant readings, airflow, and outdoor-unit operation all affect cooling performance.

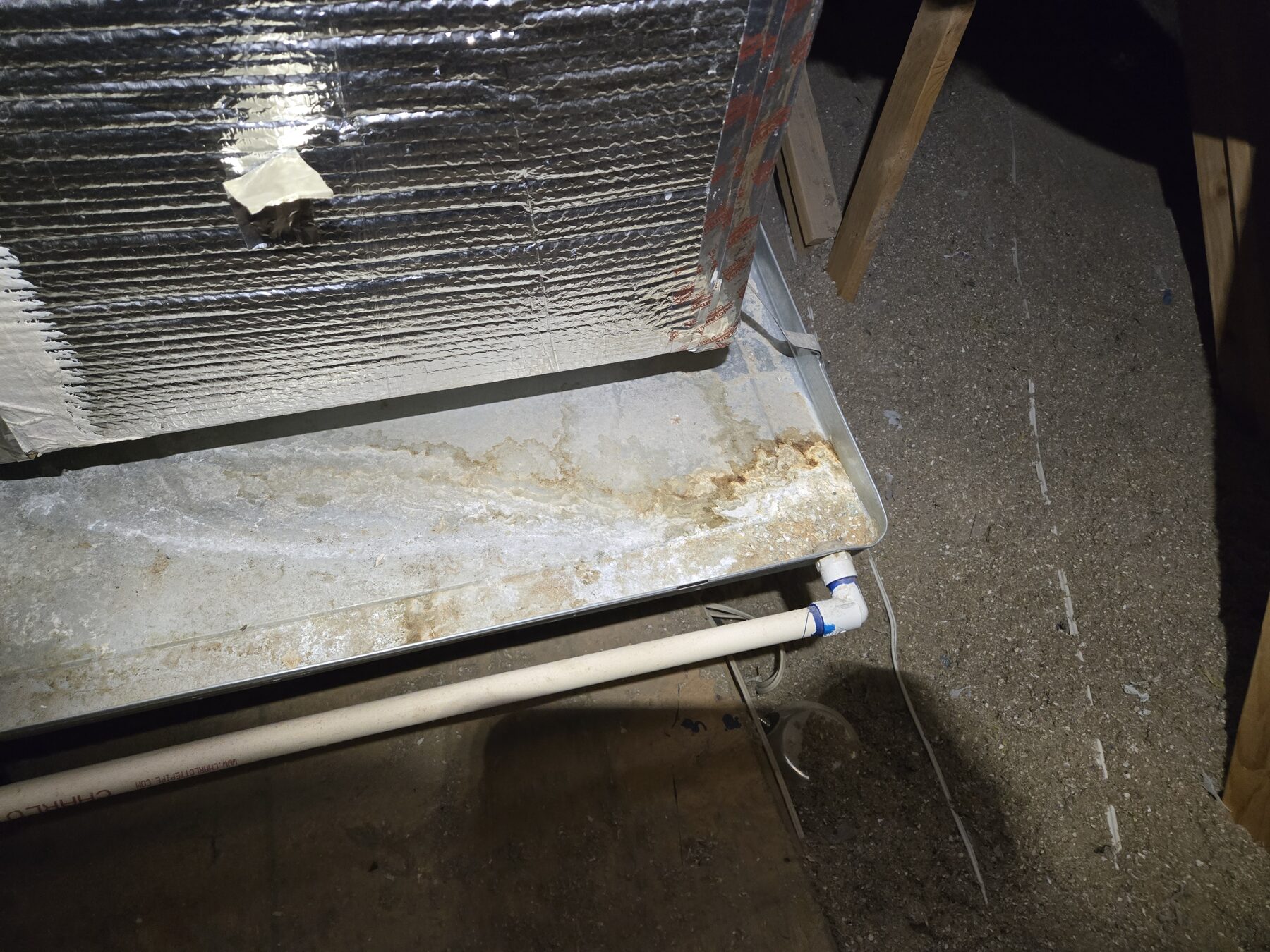

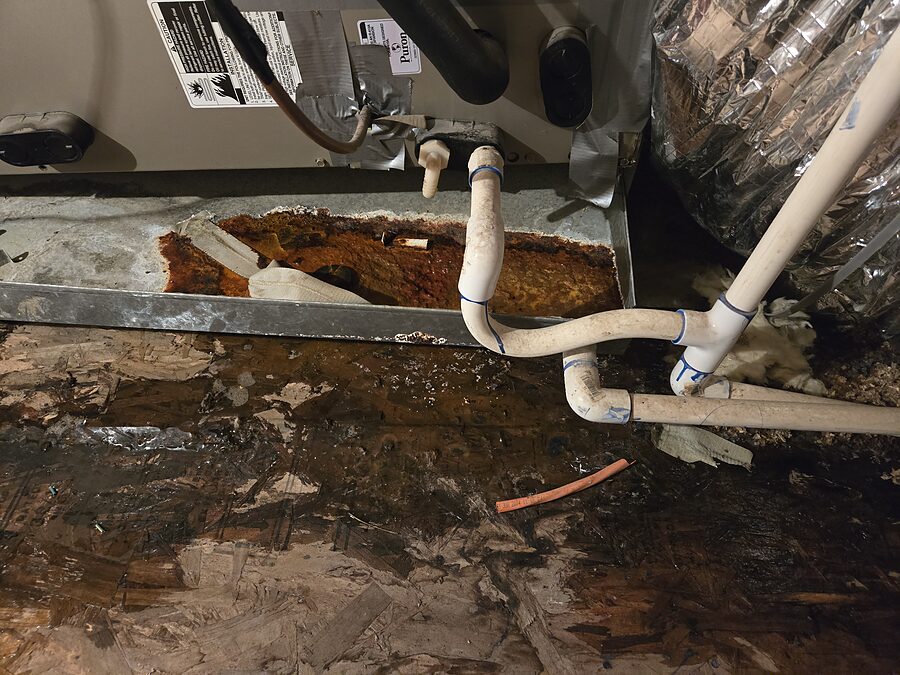

Drain and water safety
Drain parts help move condensation away from the system and reduce water damage risk.

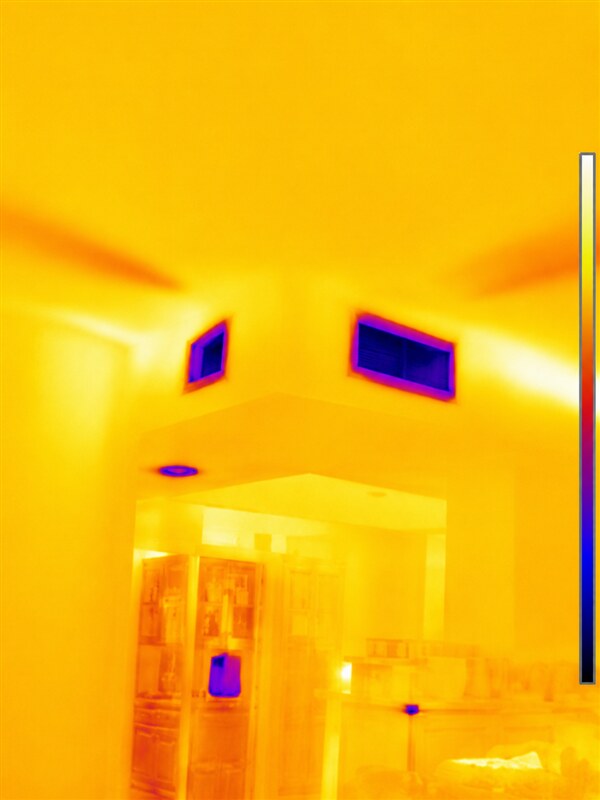

Ductwork and airflow
Airflow problems can come from ducts, transitions, registers, filters, blower performance, or coil restrictions.
Before Calling
What to tell CTS when you do not know the part name
You do not need to know the failed component before calling. It is more useful to describe what the AC is doing. Say whether the system is not cooling, blowing warm air, not turning on, humming, buzzing, leaking water, tripping a breaker, making noise, short cycling, or showing a blank thermostat.
Photos can also help. A picture of the outdoor unit, indoor unit, thermostat, water near the equipment, ice on the refrigerant line, or the model label can help CTS understand the situation before the diagnostic.
Related AC Service
Start with the symptom if you are not sure which component failed
Most customers know what the AC is doing before they know which part caused it. These pages are good starting points.
AC repair
Main Phoenix AC repair page for no cooling, weak airflow, electrical issues, and system failures.
AC not cooling
Warm air and no-cooling calls can involve electrical, airflow, refrigerant, and compressor issues.
AC will not turn on
No-start calls often involve capacitors, contactors, thermostats, disconnects, motors, or controls.
AC maintenance
Maintenance helps catch dirty coils, weak capacitors, clogged drains, worn contactors, and airflow issues.
HVAC component FAQs
Answers about repair, replacement, maintenance, and service.
What HVAC components does CTS check during AC repair?
CTS may check capacitors, contactors, motors, compressors, evaporator coils, thermostats, ducts, registers, refrigerant readings, drain pans, drain lines, control boards, filters, disconnects, transitions, wiring, and airflow conditions depending on the symptom.
Can one AC symptom point to more than one component?
Yes. No cooling, weak airflow, breaker trips, humming, short cycling, water leaks, and burning smells can each come from several possible causes. Testing is needed before replacing parts.
Does a bad component mean I need a new AC system?
Not automatically. Repair may make sense when the failed part is isolated and the system is otherwise in reasonable condition. Replacement depends on age, repair history, compressor or coil condition, airflow, and overall equipment health.
Why should CTS test parts before replacing them?
Testing helps avoid replacing the wrong part. A weak capacitor, failed motor, bad contactor, wiring issue, thermostat problem, or compressor startup issue can create similar symptoms. The repair should match the actual failure.
What components are involved when an AC will not turn on?
A no-start problem may involve the thermostat, breaker, disconnect, fuse, control board, low-voltage wiring, contactor, capacitor, condenser fan motor, compressor, float switch, or other safety and control components.
What components are involved when an AC is not cooling?
A no-cooling problem may involve airflow, dirty filters, dirty coils, refrigerant readings, condenser fan operation, compressor operation, capacitor condition, contactor operation, thermostat settings, ductwork, or frozen coil conditions.
What parts can cause weak airflow?
Weak airflow may involve dirty filters, blower motors, blower wheels, evaporator coils, return ducts, supply ducts, registers, duct transitions, dirty coils, or duct restrictions.
What parts can cause an AC water leak?
AC water leaks may involve condensate drain lines, drain pans, float switches, dirty filters, frozen coils, evaporator coils, airflow restrictions, or drain slope and trap issues.
What parts can cause breaker trips or burning smells?
Breaker trips or burning smells may involve wiring, motors, capacitors, contactors, compressor startup, disconnects, control boards, loose connections, or overheated electrical parts. The system should be checked before it is restarted repeatedly.
Are HVAC component pages DIY repair instructions?
No. Many components are inside high-voltage equipment or affect refrigerant, drainage, safety controls, and airflow. The pages are meant to help homeowners understand what a technician may be checking.
What should I tell CTS when calling about an AC component problem?
Describe the symptom first: no cooling, warm air, weak airflow, outdoor unit not starting, fan not spinning, breaker trips, water leaking, noise, burning smell, or thermostat issues. Photos, equipment location, and recent repair history can also help.
Can maintenance prevent all component failures?
No. Maintenance cannot prevent every failure, especially on older equipment. But it can help catch dirty coils, weak capacitors, clogged drains, worn contactors, dirty filters, airflow problems, and early signs of overheating before they become larger problems.
