HVAC Transitions, Plenums, and Airflow Changes
HVAC transitions connect equipment, plenums, ducts, registers, and different duct sizes or shapes. Bad duct transitions, poor plenum connections, airflow restriction, noisy airflow, duct leakage, static pressure, hot rooms, weak airflow, package-unit transitions, and rooftop-unit duct connections can all affect Phoenix-area comfort diagnostics.
What an HVAC transition does
A transition changes air from one opening size or shape to another. Good transitions help air move from equipment into ductwork, from returns back into equipment, or from ductwork into registers without unnecessary restriction, leakage, or noise.
- Airflow restriction near equipment, plenums, ducts, or registers
- Supply plenum, return plenum, and package-unit duct connection problems
- Abrupt fittings, turbulence, noisy airflow, and static pressure concerns
- Leaky transitions that waste conditioned air or pull dusty air into the system
- Transitions should be checked with ducts, registers, filters, coils, and blower airflow
Local service
CTS handles urgent AC repair, AC replacement, commercial HVAC, maintenance, water heaters, and related service across the Phoenix area.
480-696-5033
A bad transition can waste good airflow
If a transition is too abrupt, undersized, crushed, poorly sealed, poorly supported, or forced into place, air can lose volume, leak, become noisy, or leave rooms uncomfortable even when the AC equipment is working.
Phoenix-area HVAC service
CTS works on residential equipment, rooftops, installs, and troubleshooting calls in Arizona conditions.
Serving Phoenix, Mesa, Chandler, Gilbert, Scottsdale, Tempe, Glendale, Surprise, Cave Creek, Queen Creek, Maricopa, and nearby communities.
Shape Change
Transitions are where airflow changes shape
An HVAC transition is the fitting that helps air move from one size or shape to another. That may be from an air handler into a supply plenum, from a return duct into equipment, from a package unit into ductwork, or from a duct run into a register boot.
That shape change matters. If the transition is too abrupt, too small, poorly sealed, crushed, or forced into place, the system can lose airflow before the air reaches the rooms. CTS checks transitions as part of the full airflow path, not as a separate cosmetic duct fitting.
Restriction
Bad transitions can create airflow restriction
A transition can restrict airflow if it changes size too fast, turns too sharply, uses a poor fitting shape, or is smaller than the air the system is trying to move. The blower may still run, and the AC equipment may still cool, but the air can lose volume and velocity before it reaches the rooms.
Airflow restriction can show up as weak registers, hot rooms, noisy airflow, frozen coils, longer run times, or an AC not cooling complaint. CTS checks the transition shape, duct size, plenum connection, blower operation, filter condition, and coil condition before blaming one part of the system.
Supply Plenum
Supply plenum transitions
The supply plenum is where conditioned air leaves the equipment and enters the duct system. If the supply transition is undersized, leaky, poorly shaped, or connected poorly, every room downstream can be affected.
A bad supply transition can create uneven airflow, noisy operation, high static pressure, and rooms that do not receive enough air. CTS checks the supply plenum, transition shape, takeoffs, duct connections, insulation, and visible leakage when the complaint involves weak airflow or hot rooms.
Return Plenum
Return plenum transitions
The return air side matters just as much as the supply side. If the return plenum or return transition is undersized, leaking, poorly sealed, or restricted, the blower may not get enough air back to the equipment.
Return-side restriction can cause weak airflow, noisy returns, dirty filter problems, coil freezing, poor comfort, and longer run times. Return leaks can also pull dusty attic or wall-cavity air into the system and create ductwork and indoor air quality complaints. CTS checks return transitions, filter fit, return duct condition, blower airflow, and signs of dust bypass when airflow problems show up.
Equipment Connection
Transitions near equipment can affect the whole house
A transition near the equipment can affect more than one room because it sits before the air is divided into branch ducts. If the transition leaving the air handler is too tight, leaking, or poorly shaped, the duct system starts with a restriction.
The same is true on package units and rooftop equipment. Poor curb transitions, duct connections, or return/supply openings can reduce airflow before the system ever gets to the rooms. CTS checks the equipment connection, plenums, duct takeoffs, return side, supply side, and replacement fit together.
Turbulence
Abrupt fittings and turbulence
Airflow works better when it changes direction and shape smoothly. Sharp turns, sudden reducers, flat turns, crushed fittings, or forced connections can create turbulence. Turbulence can increase noise, reduce delivered airflow, and make the blower work against extra resistance.
A transition does not have to look terrible to perform poorly. Sometimes the issue is the angle, the size change, the fitting shape, or the way the duct enters the plenum. CTS looks at how the air is being asked to move, not just whether the duct is connected.
Leakage
Leaky transitions waste conditioned air
A transition can leak at seams, collars, takeoffs, corners, tape joints, mastic joints, or connections to the equipment. If the leak is on the supply side, cooled air may be lost into an attic, garage, wall cavity, or mechanical space. If the leak is on the return side, dusty hot air can be pulled into the system.
Leaky transitions can cause hot rooms, longer run times, dust complaints, dirty filters, dirty coils, and poor comfort. CTS checks visible seams, takeoffs, equipment connections, plenum joints, return connections, and signs of dust or temperature differences around the transition.
Noisy Air
Noisy airflow and pressure problems
Noisy airflow can come from more than the register grille. A tight transition, undersized opening, poor plenum connection, restrictive filter, blocked return, or high static pressure can make air whistle, roar, or rush through the duct system.
Replacing a register does not fix the problem if the pressure issue is upstream. CTS checks the transition, plenum, return path, filter, blower, duct sizing, and register airflow to figure out where the restriction is coming from.
Hot Rooms
Transitions and hot rooms
A hot room can be caused by a duct transition problem if the room’s duct run is not receiving enough air. The transition feeding that branch may be too small, poorly connected, leaking, crushed, or restricted. A poor plenum layout can also send too much air to some runs and not enough to others.
CTS checks whether the hot room is a room-load problem, register problem, duct run problem, return-air problem, or transition problem. Thermal imaging may help when paired with normal testing. The transition is one part of the airflow path, but it can be the part that throws the rest of the system off.
Replacement Details
Transitions during AC replacement
When an AC system is replaced, the transition between the new equipment and the existing ductwork matters. A new air handler, furnace, or package unit may not line up with the old plenum or duct opening. Forcing the connection can create restriction, leakage, noise, or service-access problems.
A good replacement estimate should account for duct transitions, supply and return openings, filter setup, condensate routing, access, and whether the existing ductwork can support the new equipment. CTS checks those details so the new system is not connected to a bad airflow path, and equipment replacement should not ignore duct connections.
Package Units
Transitions on rooftop and package units
Rooftop and package units depend on the connection between the unit, curb, and duct system. If the transition does not line up, leaks, or restricts airflow, the unit may struggle even if the equipment itself is working.
Package-unit transition problems can show up as weak airflow, noise, uneven cooling, high run times, water issues, or poor comfort in commercial HVAC spaces. CTS checks unit access, curb connection, supply opening, return opening, duct connection, and visible airflow issues for the services CTS handles.
Thermal Imaging
Thermal imaging can help show transition and duct temperature patterns
Thermal imaging can help show temperature patterns near duct transitions, registers, ceilings, and rooms. Cooler or warmer patterns may help document where conditioned air is moving, where air is not reaching, or where a duct or transition may be losing performance.
A thermal image does not diagnose the whole duct system by itself. CTS uses thermal imaging as one tool along with airflow checks, supply temperature, return temperature, filter condition, blower operation, duct inspection, register checks, and room comfort complaints.
Diagnostic Process
How CTS diagnoses transition and plenum problems
A transition diagnostic starts with the comfort complaint. CTS checks whether the issue is one hot room, weak airflow throughout your home, noisy airflow, dust complaints, poor performance after replacement, or airflow problems near a package unit or air handler.
The diagnostic may include visual inspection, filter condition, blower operation, return airflow, supply temperature, return temperature, register airflow, duct size, transition shape, plenum condition, takeoff connections, visible duct leakage, crushed flex duct, package-unit connections, and thermal patterns when useful. The diagnostic checks whether the problem is the transition, ductwork, return path, equipment, or room load.
Repair
Repair, seal, rebuild, or replace a transition?
Some transition problems can be corrected by sealing a leak, supporting a loose connection, adjusting a poorly fitted section, or repairing a small damaged area. Other problems require a better transition shape, an AC repair, or a rebuilt plenum connection.
Replacement becomes more realistic when the transition is undersized, badly shaped, crushed, leaking in multiple places, poorly connected to new equipment, or causing repeated airflow complaints. CTS can explain whether the issue looks like a minor repair, sealing job, airflow correction, or larger ductwork project.
Maintenance
Maintenance can catch transition and plenum problems
Maintenance cannot redesign ductwork, but it can catch airflow clues. Dirty filters, unusual temperature split, weak register airflow, noisy airflow, visible duct leakage, loose transitions, damaged insulation, and poor filter fit may point toward transition or duct problems.
In Phoenix-area homes, small airflow problems show up faster because the AC runs hard for much of the year. If air is restricted near the equipment, the whole house can feel it.
What Not To Do
What not to do with transition problems
Do not assume the AC equipment is bad because airflow is weak. Do not replace equipment without looking at the supply and return transitions if airflow was already a complaint. Do not ignore noisy airflow, crushed transitions, leaking plenum seams, or return-air restrictions. Do not close a group of registers to force airflow without checking static pressure and duct layout.
If the transition is restricting or leaking air, the equipment may work harder while the rooms still stay uncomfortable. Equipment replacement should not ignore duct connections.
Airflow Path
The transition is one part of the airflow path
Weak airflow, hot rooms, noisy air, duct leakage, and poor comfort may involve the transition, plenum, return path, filter, blower, coil, duct run, register, or room load. Thermal imaging helps when paired with normal testing.
Transition Problems
Common transition and plenum complaints
Transition problems usually appear as airflow, comfort, noise, or dust complaints.
Noisy airflow
Abrupt fittings, undersized openings, restrictive filters, blocked returns, or high static pressure can create noise.
Hot rooms
Restricted transitions can reduce delivered air to rooms even when the AC equipment works.
Duct leakage
Poorly sealed transitions can lose conditioned air into attics or pull dusty air into the return side.
Transition Photos
Transition and plenum airflow examples
Transition details are easier to understand when the duct layout, register airflow, and thermal patterns are visible.
Supply transition
The supply transition affects how air enters the duct system after it leaves the equipment.
Return transition
The return transition affects how easily air gets back to the blower and coil.
Abrupt transition
Abrupt shape changes can create turbulence, noise, and airflow restriction.
Leaky plenum seam
Leaky transitions can waste cooled air or pull dusty attic air into the system.
Package-unit transition
Package units need proper supply and return transitions to move air correctly.

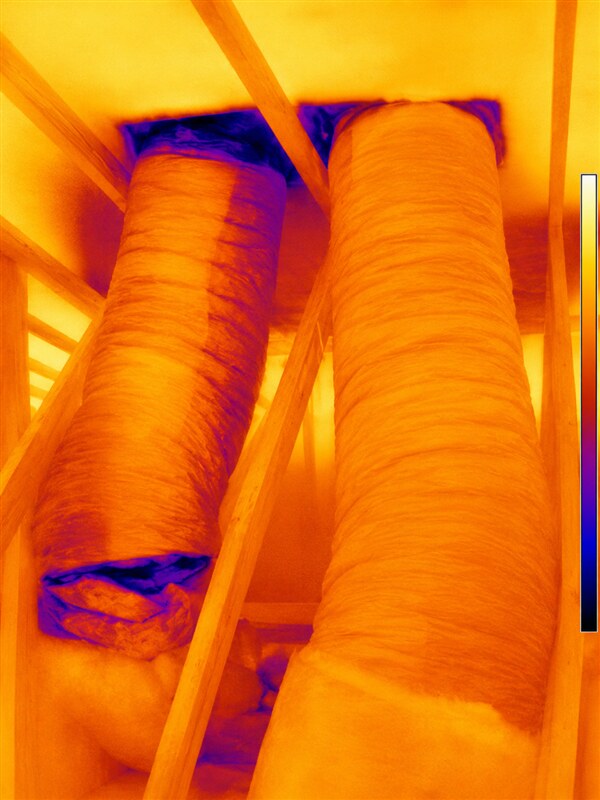

Thermal duct pattern
Thermal imaging can help show duct temperature patterns when paired with normal HVAC testing.
Related Airflow Pages
Related transition and duct pages
Transitions are part of the larger ductwork, return-air, equipment, and room-airflow system.
HVAC components
Main component hub for equipment, airflow, controls, drains, and diagnostics.
Blower motors
The blower has to move air through filters, coils, plenums, transitions, and ducts.
Air filters
Filter fit and restriction can change pressure and airflow at transitions.
Evaporator coils
Restricted airflow can affect the indoor coil and contribute to frozen coil symptoms.
AC maintenance
Maintenance can catch airflow clues around filters, coils, registers, and visible duct connections.
AC repair
Weak airflow and noisy air should be diagnosed before assuming a single part has failed.
Commercial HVAC
Package units and rooftop equipment depend on proper curb and duct connections.
HVAC transition FAQs
Answers about repair, replacement, maintenance, and service.
What is an HVAC transition?
An HVAC transition is a duct fitting that changes air from one size or shape to another. It may connect equipment, plenums, trunk lines, branch ducts, or register boots.
Can a bad transition reduce airflow?
Yes. An abrupt, undersized, crushed, leaking, or poorly shaped transition can reduce airflow and make rooms harder to cool.
Can a bad transition make the AC noisy?
Yes. Poor transition shape, undersized openings, turbulence, high static pressure, or restrictive duct layout can create noisy airflow.
Can transitions cause hot rooms?
Yes. A transition feeding one room or branch duct can restrict airflow. A bad plenum transition can also affect multiple rooms.
What is a supply plenum transition?
It is the connection where conditioned air leaves the equipment and enters the supply duct system. Problems there can affect every downstream room.
What is a return plenum transition?
It is the connection where return air enters the equipment. Poor return transitions can restrict airflow, create noise, load filters, and affect coil performance.
Can leaky transitions cause dust?
Yes. Return-side leaks can pull attic or wall-cavity dust into the system. Supply-side leaks can also disturb dusty areas and reduce delivered airflow.
Should transitions be checked during AC replacement?
Yes. New equipment should be connected to ductwork with proper transitions. Poor transitions can make new equipment perform badly.
Do rooftop package units need transitions?
Yes. Rooftop and package units rely on the curb, supply opening, return opening, and duct connections to move air correctly.
Can thermal imaging find transition problems?
Thermal imaging can help show temperature and airflow patterns near ducts and transitions, but it should be used with normal airflow checks and visual inspection.
Can CTS repair or rebuild duct transitions?
CTS can inspect transition and plenum problems and discuss repair, sealing, adjustment, or replacement.
What should I tell CTS when calling about transition or duct airflow problems?
Mention whether the problem is weak airflow, noisy air, hot rooms, dust, recent equipment replacement, rooftop or package equipment, or a visible duct connection problem. Photos of visible ductwork can help if they are safe to take.
