AC Disconnect Problems and Outdoor Power Diagnostics in Phoenix
The HVAC disconnect is the service shutoff near outdoor equipment. A loose, damaged, overheated, fused, or failed disconnect can create outdoor AC unit no power calls, breaker trips, burning electrical smells, and unsafe service conditions.
What an HVAC disconnect does
The disconnect allows power to be shut off near the equipment for service and emergency shutdown. It is part of the high-voltage circuit feeding the outdoor condenser or package unit.
- Outdoor AC unit has no power or runs intermittently
- Disconnect is loose, hot, damaged, melted, corroded, or buzzing
- Fused disconnect, failed fuses, loose lugs, or overheated terminals may be involved
- Breaker, whip, contactor, capacitor, fan motor, and compressor circuit should be checked too
- Do not bypass a disconnect to make the AC run
Local service
CTS handles urgent AC repair, AC replacement, commercial HVAC, maintenance, water heaters, and related service across the Phoenix area.
480-696-5033
Disconnect problems should not be bypassed
A disconnect is there for safety. If it is damaged, overheated, loose, or not working correctly, the repair should address the electrical problem and the outdoor unit circuit instead of bypassing the shutoff.
Phoenix-area HVAC service
CTS works on residential equipment, rooftops, installs, and troubleshooting calls in Arizona conditions.
Serving Phoenix, Mesa, Chandler, Gilbert, Scottsdale, Tempe, Glendale, Surprise, Cave Creek, Queen Creek, Maricopa, and nearby communities.
Power Check
The disconnect is part of the outdoor AC electrical circuit
The outdoor AC unit needs a complete electrical circuit before it can run. Power usually starts at the breaker panel, travels to the outdoor disconnect, then passes through the whip and into the condenser or package unit. From there, the contactor and other electrical parts send power to the compressor and condenser fan motor.
A bad disconnect can stop the outdoor unit from running, but it is only one part of the outdoor electrical system. CTS checks the breaker, disconnect, fuses if present, terminals, wire condition, whip, contactor, capacitor, fan motor, compressor circuit, and visible signs of heat damage before deciding what failed. This keeps the disconnect diagnosis tied to the whole HVAC component system.
No Power
Outdoor AC unit has no power
If the indoor blower runs but the outside AC unit is completely silent, the problem may be in the outdoor electrical circuit. The issue could be the breaker, disconnect, fuses, wiring, whip, contactor, thermostat signal, capacitor, or a safety/control problem that is preventing the outdoor unit from starting.
A dead outdoor unit should not be diagnosed from one symptom. CTS checks whether high voltage is reaching the disconnect, whether power is leaving the disconnect, whether the contactor is receiving power, and whether the outdoor components can run safely once power is available. The call may overlap with AC will not turn on, thermostat problems, fan not spinning, or compressor not starting diagnostics.
Fused Disconnect
Fused disconnects and failed fuses
Some AC disconnects are fused. That means the disconnect has fuses inside the box that protect the outdoor equipment circuit. If one of those AC fuses fails, the outdoor unit may not start even though the circuit breaker is on.
A blown fuse can point to a larger electrical problem. It may point to a short, overloaded motor, compressor problem, loose connection, bad contactor, wiring issue, or equipment drawing too much current. CTS checks why the fuse failed before replacing it and restarting the system. A failed fuse with a burning smell or repeated breaker trip should be treated as an electrical warning.
Loose Lugs
Loose lugs and overheated terminals
Loose electrical connections create heat. In an AC disconnect, that heat can damage lugs, terminals, fuses, wiring, insulation, and the disconnect body. A loose connection may start as intermittent power, buzzing, or a hot electrical smell before it becomes a full failure.
CTS checks the disconnect terminals, wire condition, fuse holders, whip connection, and visible heat damage. If the disconnect overheated, the outdoor unit should also be checked. The disconnect may have failed because of a loose connection, but it may also have been stressed by a motor, compressor, contactor, or wiring problem. When heat damage is present, the call is handled as a Phoenix AC repair issue, not a quick reset.
Damage Signs
Melted, buzzing, or damaged disconnects
A disconnect that is melted, buzzing, loose, damaged, rusted, cracked, or hot to the touch should be treated seriously. Those signs can point to heat damage, loose terminals, failed fuses, poor contact, water intrusion, corrosion, or an overloaded circuit.
Do not bypass a damaged disconnect to make the AC run. The disconnect is a safety device and part of the required service shutoff. CTS checks the disconnect and the outdoor unit together so the repair addresses the unsafe condition and the reason it happened. A damaged disconnect may also show up during AC maintenance before the system stops running.
Breaker Trips
Disconnect problems and breaker trips
A breaker trip can involve the disconnect, but it should not be blamed automatically. Repeated AC breaker trips can come from a shorted wire, failed fuse holder, overheated disconnect, bad contactor, weak capacitor, failing condenser fan motor, compressor startup problem, or another electrical fault.
Resetting the breaker over and over is a bad idea. If the breaker trips again after one reset, leave it off and call for service. CTS checks the breaker behavior, disconnect condition, fuses, wiring, contactor, capacitor, fan motor, and compressor circuit before restarting the equipment.
Electrical Smell
Disconnect problems and burning electrical smells
A burning smell near the outdoor unit or disconnect can involve overheated wiring, loose terminals, failed fuses, a damaged disconnect, a bad contactor, a weak capacitor, a failing motor, or compressor startup trouble. The smell should not be ignored.
If the AC smells hot, smoky, or electrical, turn the system off and call for service. CTS checks the disconnect, fuses, wire terminals, whip, contactor, capacitor, fan motor, compressor circuit, and visible signs of heat damage. A hot electrical smell may also come with buzzing or humming before the outdoor unit quits.
Weather Exposure
Weather, water, and corrosion at outdoor disconnects
Outdoor disconnects sit outside in heat, dust, rain, irrigation overspray, sun exposure, and weather. Over time, the box, pullout, fuses, terminals, screws, and wire connections can corrode or loosen.
Corrosion can create poor contact, intermittent power, heat, buzzing, or no-start problems. CTS checks for water intrusion, rust, loose parts, damaged covers, deteriorated wiring, and unsafe disconnect conditions during Phoenix-area HVAC diagnostics.
Whip And Conduit
The whip and conduit matter too
The electrical whip carries power from the disconnect into the outdoor unit. If the whip is damaged, loose, poorly supported, cracked, pulled apart, or has damaged conductors inside, the outdoor unit may have an unsafe power problem.
CTS checks the disconnect and the whip together. A repair may need to address the disconnect, wiring, conduit, electrical whip, terminals, or outdoor-unit connection point so the electrical connection is safe and reliable. Whip condition can also matter during AC replacement and installation because new equipment should not be connected to damaged wiring.
Repair
Disconnect replacement versus deeper electrical repair
Disconnect replacement may be the right repair when the disconnect is damaged, overheated, corroded, loose, broken, or no longer safe to use. That is a direct repair when the disconnect itself has failed.
A deeper electrical repair may be needed when the disconnect failed because of a motor drawing too much current, compressor startup problem, bad contactor, loose wiring, wrong fuse, damaged whip, breaker issue, or other electrical fault. CTS checks whether the disconnect is the main problem or the part that showed the damage first.
Replacement Details
Disconnect checks during AC replacement
During AC replacement, the disconnect should be checked as part of the installation plan. A new outdoor unit should not be connected to a damaged, unsafe, corroded, or poorly installed disconnect.
CTS checks disconnect location, condition, wiring, whip, breaker compatibility, equipment requirements, and visible safety concerns before replacement work. If the disconnect or whip needs correction, that should be discussed before the new equipment is installed. The contactor, capacitor, and compressor requirements can also affect the electrical work.
Diagnostic Process
How CTS diagnoses disconnect-related calls
A disconnect diagnostic starts with the symptom. CTS checks whether the outdoor unit is dead, the breaker trips, fuses fail, the disconnect smells hot, the box is buzzing, the unit runs intermittently, or the electrical parts show heat damage.
The diagnostic may include checking breaker condition, high-voltage power into the disconnect, power out of the disconnect, fuses if present, fuse holders, lugs, terminals, wire condition, whip condition, contactor input power, capacitor condition, fan motor operation, compressor circuit, amp draw, and visible signs of melting, arcing, corrosion, or water damage. Testing matters because the full electrical circuit should be checked before parts are replaced.
Maintenance
Maintenance can catch disconnect problems early
Maintenance can catch some electrical warning signs. Loose terminals, corrosion, heat discoloration, damaged whip, worn contactors, weak capacitors, and outdoor electrical cabinet issues may show up before the AC quits completely.
In Phoenix-area heat, outdoor electrical parts work hard. Checking visible electrical connections during maintenance can help reduce avoidable no-start calls, breaker trips, and burning-smell problems.
What Not To Do
What not to do with an AC disconnect
Do not bypass a disconnect to make the AC run. Do not keep resetting a breaker if it trips again. Do not open a damaged disconnect if you are not trained to work around high voltage. Do not ignore buzzing, melting, burning smells, corrosion, or loose wiring.
If the disconnect looks damaged or the outdoor unit has power problems, shut the system off if needed and call for service. The disconnect and the outdoor unit should be checked together.
High-Voltage Warning
Do not open or bypass an AC disconnect if you are not trained
HVAC disconnects carry high voltage. Burning smells, melted parts, buzzing, corrosion, failed fuses, or repeated breaker trips should be handled by a qualified technician. The disconnect and outdoor unit should be checked together.
Common Calls
Disconnect problems usually show up as outdoor power calls
The reported symptom tells CTS where to start, but the breaker, disconnect, wiring, contactor, capacitor, motor, and compressor circuit may all matter.
Outdoor unit dead
The unit may have no high voltage because of breaker, disconnect, fuse, wiring, control, or contactor problems.
Breaker trips
A disconnect problem can be tied to electrical faults, failed components, equipment overload, or compressor startup trouble.
Hot electrical smell
Melted or loose high-voltage connections should be checked before the system is run again.
Disconnect Photos
AC disconnect and outdoor power examples
Disconnect photos help show why the breaker, fuses, lugs, whip, wiring, contactor, capacitor, fan motor, and compressor circuit may need to be checked together.
Outdoor disconnect
The disconnect is the service shutoff near the equipment and part of the outdoor unit electrical circuit.
Fused disconnect
Failed fuses can stop the outdoor unit from starting, but the reason the fuse failed still needs to be checked.

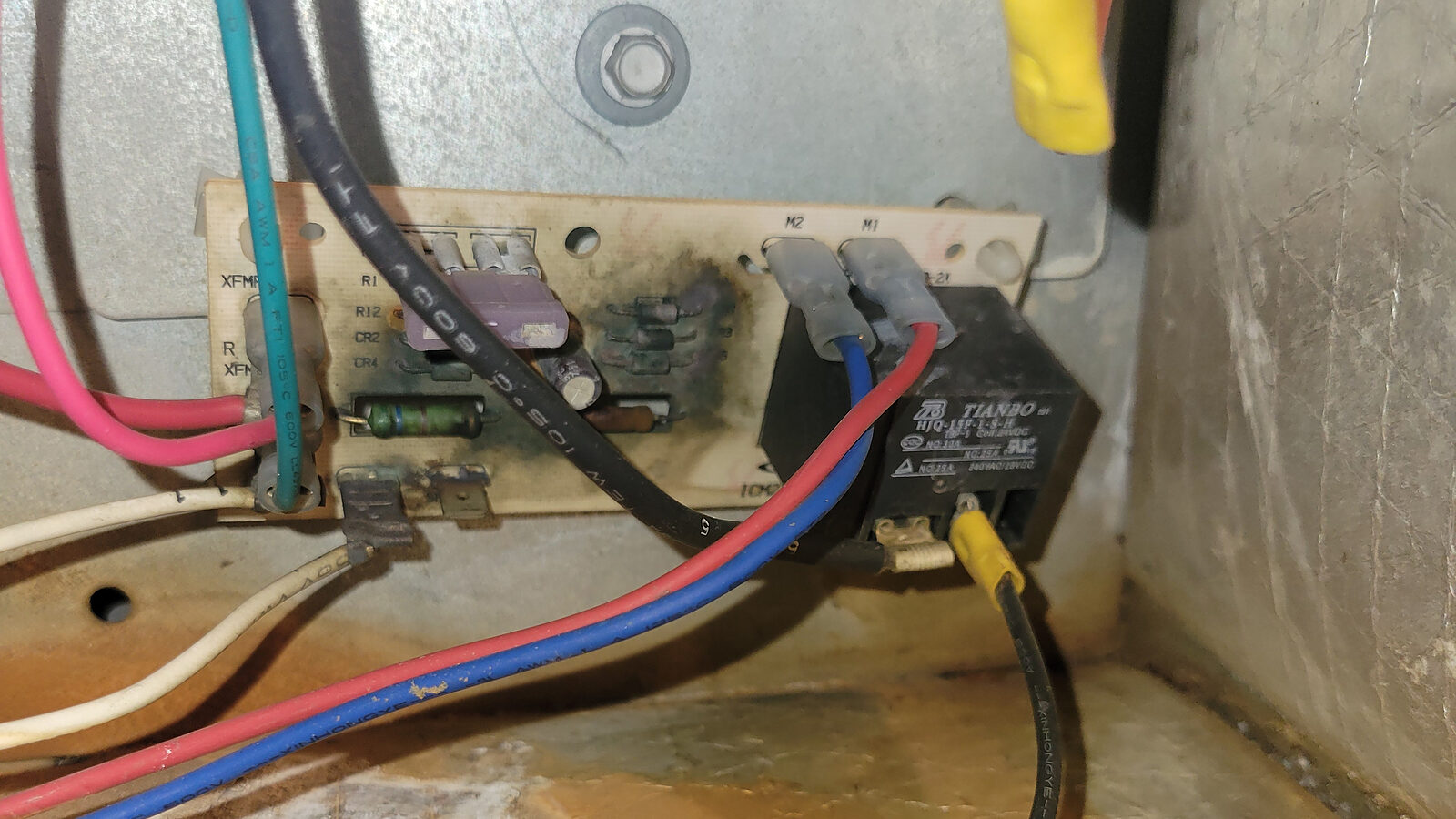

Overheated terminals
Loose or overheated connections can create burning smells, intermittent power, and unsafe conditions.
Electrical whip
The whip carries power from the disconnect into the outdoor equipment and should be checked for damage.

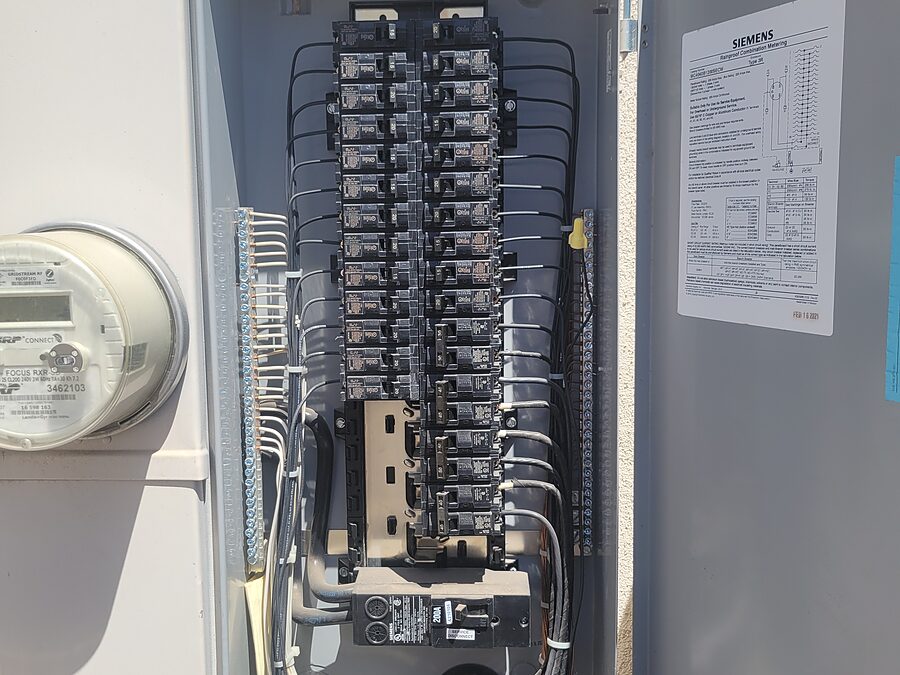

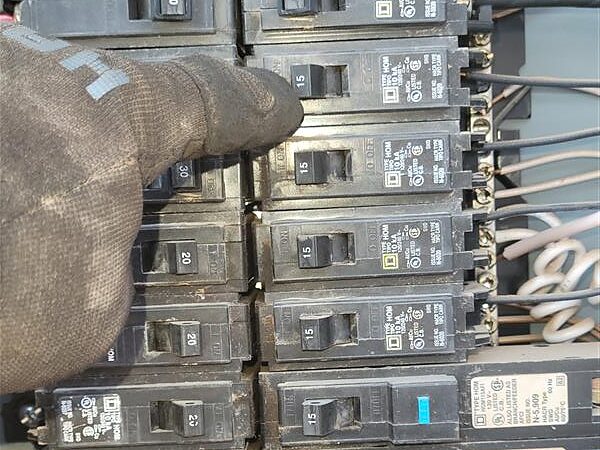

Breaker and disconnect
Power problems may involve the breaker, disconnect, wiring, contactor, capacitor, motor, or compressor.
AC replacement electrical check
A new outdoor unit should not be connected to unsafe or damaged disconnect wiring.
Related Electrical Pages
Related disconnect and AC electrical pages
Disconnects connect to no-start, breaker, contactor, capacitor, motor, compressor, and burning-smell diagnostics.
HVAC components
The disconnect is one part of the larger outdoor electrical and component system.
AC will not turn on
No-start diagnostics include power, disconnects, contactors, controls, and motors.
Contactors and capacitors
Power leaves the disconnect before the contactor and capacitor-supported loads are checked.
Condenser fan motors
A fan motor problem can create outdoor power and overheating symptoms.
Burning smell
Electrical smells can involve wiring, disconnects, contactors, motors, or boards.
HVAC disconnect FAQs
Answers about repair, replacement, maintenance, and service.
What does an HVAC disconnect do?
An HVAC disconnect is the service shutoff near outdoor equipment. It allows power to be disconnected near the unit for service and emergency shutdown.
Can a bad disconnect stop the AC from starting?
Yes. If power is not passing through the disconnect, fuses, terminals, or wiring correctly, the outdoor unit may not run.
What are signs of a bad AC disconnect?
Possible signs include no power to the outdoor unit, buzzing, burning smell, melted parts, loose connections, failed fuses, corrosion, intermittent operation, or breaker trips.
What is a fused AC disconnect?
A fused disconnect has fuses inside the disconnect box. If a fuse fails, the outdoor unit may stop running. The cause of the failed fuse should be checked before replacing it.
Can a disconnect cause a burning electrical smell?
Yes. Loose terminals, overheated lugs, failed fuses, damaged wire, corrosion, or poor contact inside the disconnect can create heat and electrical odor.
Can a disconnect cause breaker trips?
Yes, but breaker trips can also involve the compressor, condenser fan motor, capacitor, contactor, wiring, or other electrical faults. The full electrical circuit should be checked.
Should I bypass a bad disconnect?
No. A disconnect is a safety device. It should be repaired or replaced properly, not bypassed.
What is the electrical whip on an AC unit?
The whip is the flexible conduit and wiring that carries power from the disconnect to the outdoor unit. If it is damaged or loose, it may need repair or replacement.
Should the disconnect be checked during AC replacement?
Yes. The disconnect, whip, breaker, wiring, and outdoor unit requirements should be checked before new equipment is installed.
Can weather damage an AC disconnect?
Yes. Heat, dust, rain, irrigation overspray, corrosion, sun exposure, and loose covers can damage outdoor disconnects over time.
Can maintenance catch disconnect problems?
Maintenance can reveal loose terminals, corrosion, heat discoloration, damaged wiring, worn contactors, or weak capacitors before a failure happens.
What should I tell CTS when calling about a possible disconnect problem?
Mention whether the outdoor unit is dead, the breaker trips, the disconnect is buzzing, there is a burning smell, fuses failed, the box looks melted or damaged, or the unit runs intermittently.
