AC Drain Pan Water Leaks and Overflow Diagnostics
HVAC drain pans catch condensate near the evaporator coil and help protect your home when water forms or backs up. Standing water in an AC pan, emergency drain pan overflow, rusted pans, cracked pans, float switch trips, frozen coil melt, and ceiling stains should be checked before water spreads.
What an AC drain pan does
When warm indoor air passes over a cold evaporator coil, moisture condenses and should drain away. The drain pan catches that condensate and directs it into the condensate drain line instead of letting water collect around the indoor unit.
- Standing water in an emergency or secondary drain pan
- Ceiling stain below attic equipment
- Rusted drain pan, cracked drain pan, or leaking pan outlet
- Clogged condensate drain or float switch trip
- Frozen coil, dirty filter, weak airflow, and drain-line problems can fill the pan
Local service
CTS handles urgent AC repair, AC replacement, commercial HVAC, maintenance, water heaters, and related service across the Phoenix area.
480-696-5033
A full drain pan needs the water source checked
The pan is one part of the diagnostic. A pan full of water may point to a clogged drain, rusted pan, cracked pan, frozen coil, dirty filter, poor slope, weak airflow, or drain-line problem. The cause needs to be found before the system is put back into normal operation.
Phoenix-area HVAC service
CTS works on residential equipment, rooftops, installs, and troubleshooting calls in Arizona conditions.
Serving Phoenix, Mesa, Chandler, Gilbert, Scottsdale, Tempe, Glendale, Surprise, Cave Creek, Queen Creek, Maricopa, and nearby communities.
Pan Types
Primary drain pan versus secondary drain pan
Most AC systems have a primary drain pan built into or directly below the evaporator coil area. That pan is supposed to catch normal condensate and send it into the condensate drain line. In some installations, especially attic systems, there may also be a secondary or emergency drain pan under the equipment.
The secondary pan is not meant to hold water during normal operation. If water is sitting in the emergency pan, something is wrong. The primary drain may be clogged, the pan may be leaking, the coil may be freezing, or the drain setup may not be moving water correctly. CTS checks both the primary pan and the secondary pan before deciding what needs repair. Related pages include drain cleaning, AC leaking water, and frozen coil diagnostics.
Standing Water
Standing water in the emergency pan
Standing water in an emergency pan should not be treated as normal. That pan is there to catch overflow when the primary drain or equipment has a problem. If water is sitting in the pan, the system should be checked before it overflows or damages the ceiling.
Possible causes include a clogged condensate drain, blocked trap, cracked primary pan, poor drain slope, rusted pan, frozen coil melt, dirty filter, weak airflow, dirty evaporator coil, or a float switch issue. CTS looks for the source of the water instead of only removing the water from the pan. Filter, blower, coil, and coil cleaning conditions may all be part of the check.
Ceiling Damage
Drain pan overflow and ceiling stains

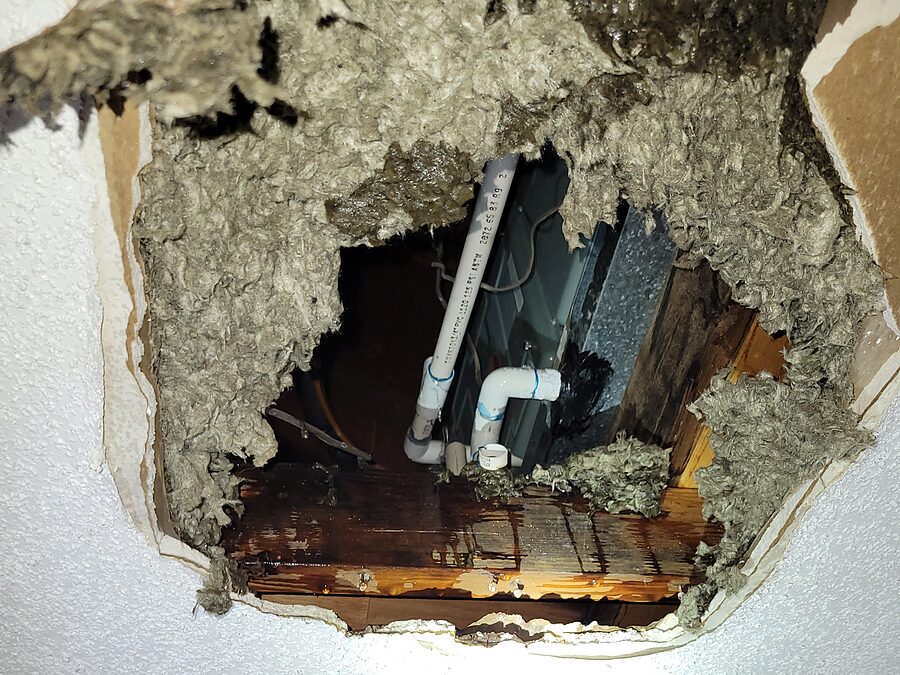

A ceiling stain below attic AC equipment is a warning sign. The visible stain may be smaller than the wet area above the drywall. Water can spread through insulation, framing, drywall seams, light openings, and ceiling texture before it becomes obvious.
If water is active near an attic air handler or ceiling, the system should be shut off if needed and checked quickly. CTS checks the drain pan, condensate drain line, float switch, coil condition, filter condition, airflow, and where the water is moving to find out why water reached the ceiling area. AC maintenance can sometimes catch pan and drain issues before they reach this point.
Rust
Rusted drain pans and pinhole leaks
A rusted drain pan can eventually develop weak spots or pinhole leaks. At first, the pan may only show staining or surface rust. Later, water may escape before it reaches the drain connection. That can cause water near the indoor unit, in the attic, or on the ceiling below.
A rusted pan needs to be checked carefully. The repair depends on the equipment design, pan type, access, coil location, and how badly the pan is deteriorated. CTS checks whether the pan is actually leaking and whether the drain line, coil, airflow, or freeze condition caused the pan to hold more water than it should.
Cracks And Outlets
Cracked plastic pans and damaged pan connections
Some drain pans are plastic or composite. These can crack, warp, separate at the drain connection, or leak around fittings. A cracked pan may only leak when the system is running and making condensate.
The pan connection matters too. A loose, cracked, or poorly sealed drain connection can make it look like the entire pan failed. CTS checks the pan body, drain outlet, fitting, trap, slope, and nearby piping before deciding whether the pan, drain connection, or drain line is the real issue. If the problem is piping-related, the repair may overlap with plumbing piping, but the water source still needs to be traced from the AC first.
Safety Shutoff
Float switches and pan safety shutoffs
A float switch is a safety device that can shut the AC off when water rises in the pan or drain system. To you, it may look like the AC suddenly stopped working. In reality, the switch may be trying to prevent water damage.
A tripped float switch should not be bypassed and ignored. CTS checks why water reached the switch. The cause may be a clogged drain, full pan, poor slope, frozen coil, cracked pan, dirty filter, weak airflow, or another drainage problem.
Frozen Coil Melt
Frozen coil melt can overwhelm the pan
A frozen evaporator coil can create more water than expected when the ice melts. That water may enter the drain pan quickly and overwhelm the normal drain path. You may see standing water in the pan, water near the indoor unit, or a ceiling stain.
A frozen coil can point to several causes. It may be caused by a dirty filter, weak airflow, dirty coil, blower problem, duct restriction, refrigerant issue, or another condition. CTS checks for freezing and airflow problems before treating the pan as the only failed part.
Pan And Drain
Drain pans and condensate drain lines work together
The drain pan catches condensate. The drain line carries that water away. If the drain pan is sound but the line is clogged, water can back up and overflow. If the drain line is clear but the pan is cracked or rusted, water can leak before it reaches the drain.
That is why CTS checks the pan and drain line together. The repair may involve clearing a drain, fixing a trap, correcting slope, repairing a pan connection, adding or checking a float switch, or addressing a cracked or rusted pan. The drain pan and condensate drain need to move water out of the system correctly.
Pan Slope
Poor pan slope and equipment leveling
A drain pan needs to direct water toward the drain connection. If the equipment is not level, the pan is pitched wrong, the platform has shifted, or the pan is installed poorly, water may sit in the wrong area or miss the drain outlet.
Standing water can increase rust, sludge buildup, overflow risk, and recurring leak problems. CTS checks whether the pan is positioned correctly and whether water has a clear path to the drain.
Airflow
Dirty filters, weak airflow, and pan water
A dirty filter or airflow restriction can lead to coil freezing. When the ice melts, water can collect in the drain pan faster than normal. That can look like a drain pan problem even when the first cause was airflow.
CTS checks the filter, blower, coil, ductwork, registers, and airflow when water is showing up in or around the pan. If the airflow problem is not fixed, the pan may fill again and your home may also have AC not cooling symptoms.
Recurring Water
Recurring water in the drain pan
If water keeps showing up in the drain pan, the issue should be traced deeper. Recurring pan water can point to a drain restriction, bad slope, missing or failed float switch, frozen coil, dirty filter, dirty coil, cracked pan, poor drain connection, or pan that is not installed correctly.
Removing water from the pan only handles the immediate overflow. CTS checks why the pan is filling and whether the water is coming from normal condensate, overflow, freezing, drain backup, or a pan defect.
Attic Systems
Attic drain pans need extra attention
An attic drain pan can protect the ceiling below, but only if it is in good condition and the safety setup works. A pan hidden in the attic may overflow or leak before you know there is a problem.
Attic systems should be checked for pan condition, float switch operation, drain routing, cleanout access, primary drain condition, secondary pan condition, and signs of previous water. A small attic leak can become ceiling damage quickly.
Diagnostic Process
How CTS diagnoses drain pan problems
A drain pan diagnostic starts with where the water is showing up. CTS checks the primary pan, secondary pan, drain outlet, condensate drain line, trap, cleanout access, float switch, pan slope, pan condition, visible rust, cracks, water stains, filter condition, blower operation, evaporator coil condition, and signs of freezing.
The diagnostic separates a clogged drain from a cracked pan, rusted pan, frozen coil, dirty filter, airflow restriction, bad float switch, poor slope, or drain-line problem. The repair depends on the cause of the water, not just the water in the pan. Phoenix-area HVAC diagnostics should find where the water is coming from and where it is supposed to go before parts are replaced.
Maintenance
Maintenance helps prevent drain pan problems
AC maintenance can help catch pan and drain problems before they become water damage. A maintenance visit may include checking the drain pan, drain line, cleanout, float switch, filter, coil condition, and signs of poor airflow or freezing.
Checking the pan and drain system helps reduce avoidable water problems during Phoenix-area cooling seasons, when the AC can create condensate for long periods.
What Not To Do
What not to do when the drain pan is full
Do not keep running the AC if water is leaking into a ceiling or finished area. Do not bypass a float switch to force the system to run. Do not assume the problem is fixed because the AC shut off. Do not ignore standing water in the emergency pan.
If water is active, shut the system off if needed and call for service. The pan, drain line, float switch, coil, filter, and airflow should be checked before the system is put back into normal operation.
Water Damage Warning

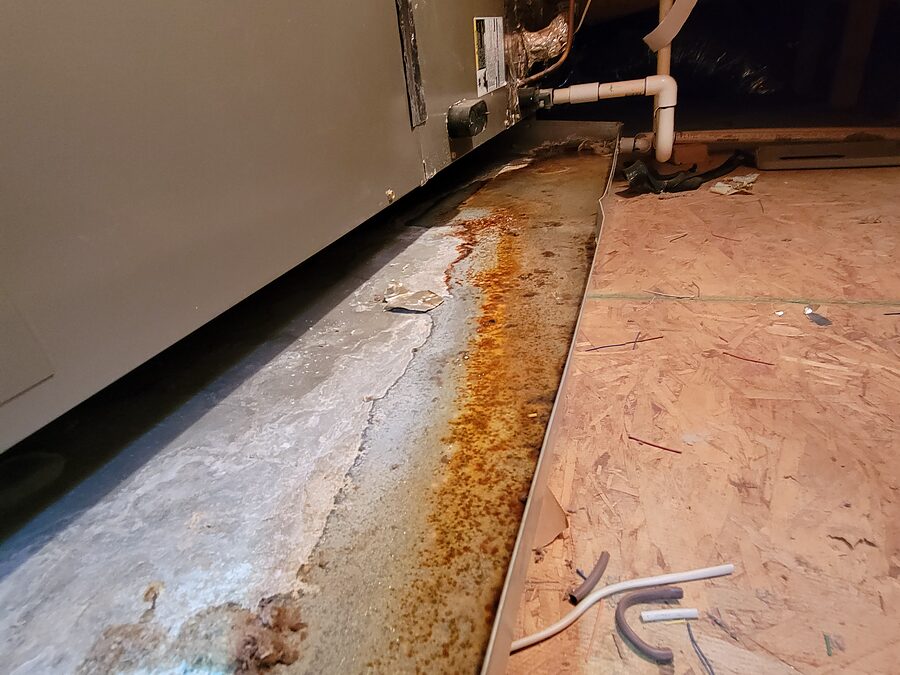

Do not ignore water around indoor AC equipment
If water is active near an air handler, ceiling, drain pan, or indoor unit, turn the system off if needed and call for service before the leak spreads. Do not bypass float switches or keep running the AC into a finished area.
Common Calls
Drain pan problems usually start as water leak calls
The water in the pan helps start the diagnostic, but the drain, float switch, coil, filter, blower, and airflow still need to be checked.
Emergency pan has water
The primary drain, pan, coil, airflow, or safety setup should be checked before the pan overflows.
AC shut off
A float switch may have stopped the system because water rose in the pan or drain system.
Ceiling stain appeared
Attic equipment, secondary pans, drains, and frozen coil melt should be checked quickly before water spreads.
Drain Pan Photos
AC drain pan and water leak examples
Drain pan photos show why water leaks need to be traced to the source instead of treated as only water in a pan.
Standing water in pan
Standing water in an emergency pan means the primary drain or equipment condition needs attention.

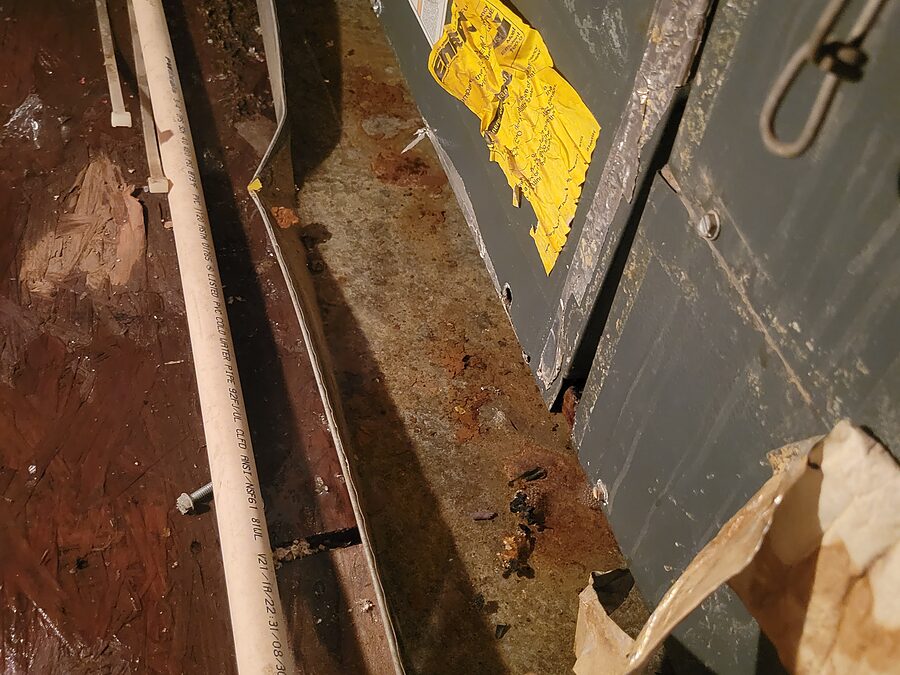

Rusted drain pan
Rust can lead to weak spots, pinholes, and leaks before the water reaches the drain.
Cracked or leaking pan connection
A damaged pan outlet can leak even if the drain line itself is partly open.
Float switch
A float switch can shut the system down when water rises to reduce water damage risk.
Attic air handler pan
Attic drain pans need extra attention because leaks can become ceiling damage quickly.
Frozen coil melt
A frozen coil can melt and overload the pan, even when the problem started somewhere else.
Related Drain Pages
Related drain pan and AC water leak pages
Drain pan problems connect to condensate drains, frozen coils, filters, airflow, maintenance, and AC water leak diagnostics.
HVAC drain pan FAQs
Answers about repair, replacement, maintenance, and service.
What does an AC drain pan do?
An AC drain pan catches condensate water near the evaporator coil and directs that water toward the condensate drain line.
What is the difference between a primary and secondary drain pan?
The primary pan handles normal condensate from the coil. A secondary or emergency pan is usually there to catch overflow if the primary pan or drain system fails.
Is water in the emergency drain pan normal?
No. Water in the emergency pan usually means the primary drain, pan, coil, airflow, or safety setup needs to be checked.
Why is my AC drain pan full of water?
A full pan may be caused by a clogged drain line, blocked trap, poor drain slope, rusted pan, cracked pan, frozen coil melt, dirty filter, airflow restriction, or float switch issue.
Can a drain pan cause ceiling damage?
Yes. If attic equipment overflows or leaks, water can stain drywall, damage insulation, and spread through the ceiling before you see the actual pan.
Can a rusted drain pan leak?
Yes. Rust can create weak spots, pinholes, or cracks that let water escape before it reaches the drain line.
Can a frozen coil fill the drain pan?
Yes. When a frozen coil thaws, the water can enter the pan quickly and may overwhelm the normal drain path.
What does a float switch do?
A float switch can shut the AC off when water rises in the pan or drain system. It helps reduce water damage risk and should not be bypassed.
Does drain pan water always mean the drain line is clogged?
No. A clogged drain is common, but pan water can also involve a cracked pan, rusted pan, frozen coil, dirty filter, poor airflow, bad slope, or pan connection problem.
Should I keep running the AC if the drain pan is full?
No. If the pan is full or water is leaking into finished space, shut the system off if needed and call for service.
Can maintenance prevent drain pan problems?
Maintenance can reduce avoidable problems by checking the pan, drain line, float switch, filter, coil condition, and signs of poor airflow or freezing.
What should I tell CTS when calling about a drain pan problem?
Mention where the water is showing up, whether the system shut off, whether the pan is full, whether there is a ceiling stain, whether the system is in the attic, and whether the problem has happened before.
