HVAC Control Board Problems and Diagnostics in Phoenix
An HVAC control board coordinates thermostat signals, safeties, blower operation, outdoor-unit calls, ignition or heat controls, and other HVAC components. A bad board can cause strange no-start, blower, fuse, relay, or thermostat symptoms, but the board should be tested before it is replaced.
What an HVAC control board does
The board receives low-voltage signals and helps the equipment run in the correct sequence. Depending on the system, an AC control board or furnace control board may control blower timing, safety circuits, cooling calls, heating calls, fan operation, ignition sequence, or communication between components.
- AC will not start or responds incorrectly
- Blower does not run, runs constantly, or runs at the wrong time
- Blown low-voltage fuse, burned board, failed relay, or wiring concern
- Thermostat signal, float switch, safety circuit, and connected loads need testing
- The cause should be found before control board replacement
Local service
CTS handles urgent AC repair, AC replacement, commercial HVAC, maintenance, water heaters, and related service across the Phoenix area.
480-696-5033
Control board replacement starts with testing
Boards can be damaged by shorts, water, age, pests, voltage problems, wiring mistakes, or failed loads. Phoenix-area HVAC diagnostics should prove whether the board failed and why, so a replacement board is not damaged the same way.
Phoenix-area HVAC service
CTS works on residential equipment, rooftops, installs, and troubleshooting calls in Arizona conditions.
Serving Phoenix, Mesa, Chandler, Gilbert, Scottsdale, Tempe, Glendale, Surprise, Cave Creek, Queen Creek, Maricopa, and nearby communities.
Testing First
A control board problem should be proven
A control board can be involved in many HVAC problems, and other faults can make a good board look bad. A thermostat problem, blown low-voltage fuse, float switch, door switch, loose wire, shorted thermostat wire, bad transformer, contactor coil problem, blower motor issue, or failed safety can all make the system act like the board failed.
CTS checks the control circuit before replacing a board. That means looking at the thermostat call, low-voltage power, fuses, safeties, relays, connected loads, wiring, and visible damage. A board should be replaced because testing supports it, not because the system is acting strange. Related pages include HVAC components, contactors, and AC will not turn on diagnostics.
Thermostat Signal
The board connects the thermostat to the equipment
The thermostat sends low-voltage signals. The control board receives those signals and helps decide what the equipment should do. Depending on the system, the board may control blower timing, cooling calls, heating calls, safety circuits, ignition sequence, fan operation, or communication between parts.
If the thermostat says the AC should be running but the equipment does not respond correctly, CTS checks whether the signal is leaving the thermostat, reaching the board, passing through the board, and reaching the part that should run. That helps separate a thermostat problem from a board problem, wiring problem, disconnect problem, or outdoor-unit control issue.
Low-Voltage Fuse
Blown low-voltage fuse
A blown low-voltage fuse can stop the HVAC system from responding. The thermostat may go blank, the outdoor unit may not receive a cooling call, or the system may seem completely dead on the control side.
The fuse usually blows for a reason. It may be caused by a shorted thermostat wire, bad contactor coil, damaged outdoor low-voltage wiring, water at a float switch, pinched wire, control board issue, or wiring mistake. CTS checks for the cause before replacing the fuse, because a new fuse may blow again if the short is still there. Water-related calls may also involve AC leaking water or drain line issues.
Blower Operation
Blower does not run or runs at the wrong time
A control board can affect when the indoor blower starts and stops. If the blower does not run, runs constantly, runs only in fan mode, starts late, shuts off too soon, or runs at the wrong time, the board may be involved.
That does not prove the board is bad. The issue may also involve the thermostat, blower motor, blower relay, ECM module, capacitor, door switch, wiring, speed tap, or safety circuit. CTS checks the blower command and the blower circuit before replacing the board. The airflow side still matters too, including the air filter when the call starts as AC not cooling.
Cooling Call
Outdoor unit not receiving the cooling call
The outdoor unit needs the correct signal before it can start. If the indoor blower runs but the outside AC unit does not, the control board may not be sending the cooling call, or something may be interrupting the signal before it reaches the contactor.
Possible causes include a thermostat problem, float switch, low-voltage fuse, wiring issue, control board relay, contactor coil, transformer problem, or safety circuit. CTS checks whether the cooling signal leaves the board and reaches the outdoor unit before blaming the condenser, capacitor, fan motor, or compressor startup circuit.
Safeties
Float switches and safety circuits can stop the system
Some systems use float switches or safety circuits to stop operation when water backs up, a door panel is open, or another safety condition is present. To you, it can look like the control board failed or the thermostat stopped working.
If a drain safety switch opens, the system may stop cooling to help prevent water damage. CTS checks the safeties and the reason they opened before replacing a board. A control board may be doing its job by refusing to run the system when a safety is open. Related parts can include the drain pan, condensate drain, float switch, and access-panel switches.
Heat Damage
Burned board, burned trace, or failed relay
A burned control board, burned trace, failed relay, melted connector, or discolored terminal is a serious clue. It may mean the board failed, but it may also mean something connected to the board pulled too much current, shorted, overheated, or damaged the board.
The visible burn mark may be the result of another fault. CTS checks the connected loads, wiring, transformer, contactor coil, blower circuit, safeties, and signs of water or pest damage before installing a replacement board. If there is a burning smell, the system should be shut off and checked before it is run again.
Cabinet Damage
Water, pests, and corrosion damage
Control boards do not like water, pests, corrosion, or dirty equipment cabinets. Condensate overflow, roof leaks, attic moisture, pest damage, rodent-chewed wiring, insects, dust, and corrosion can all create control problems.
If the board has water damage or pest damage, replacing the board may not be enough. The source of the water, wiring damage, cabinet condition, and connected circuits need to be checked so the same failure does not happen again. Regular AC maintenance can sometimes catch water near controls, clogged drains, and dirty cabinets before they become a failure.
Thermostat Overlap
Board problems and thermostat issues overlap
A thermostat problem can look like a board problem. A board problem can also look like a thermostat problem. The thermostat may be blank, the system may not respond, the blower may not run correctly, or the outdoor unit may not start.
CTS checks the thermostat settings, thermostat power, batteries if applicable, wiring, low-voltage signal, board terminals, and equipment response. The diagnostic finds where the signal stops before replacing the thermostat or board. If the symptom is repeated starts and stops, the call may also overlap with AC short cycling diagnostics.
Short Cycling
Board problems and short cycling
Short cycling can involve a control board, but it can also involve thermostat location, low-voltage wiring, safety switches, refrigerant pressure controls, airflow restrictions, dirty coils, drain problems, or equipment sizing. The board may be interrupting the call because another condition is telling the system to stop.
CTS checks the cycling pattern and the control signals. If the board is shutting the system down, the next question is why. Replacing the board without finding the cause can miss the real issue. Related checks may include dirty coil, filter, refrigerant, and drain-line conditions.
Repair
Board replacement versus deeper electrical repair
Control board replacement may be the right repair when the board has failed and the connected circuits test correctly. That may include a failed relay, damaged trace, bad output, or board fault that is proven during testing.
A deeper repair may be needed when the board was damaged by a shorted wire, failed contactor coil, water leak, pest damage, transformer issue, motor load, wiring mistake, or voltage problem. CTS checks for the cause before installing a new board so the replacement is not damaged the same way. The repair may stay small, or it may become a broader AC repair or replacement issue depending on the system.
Board Fit
Board compatibility and setup matter
A control board has to match the equipment. Model number, wiring layout, terminal labels, blower settings, dip switches, ignition or heat sequence, communication requirements, and equipment type can all matter.
A similar-looking board still needs the right equipment information, markings, wiring, and setup requirements. CTS checks the equipment information, board markings, wiring, and setup requirements before replacing a board. Incorrect wiring or the wrong board can create new problems.
Diagnostic Process
How CTS diagnoses control-board-related calls
A control-board diagnostic starts with the symptom. CTS checks whether the system is not starting, the blower is not running, the outdoor unit is not receiving a call, the thermostat is blank, the fuse is blown, the board is burned, the system is short cycling, or the equipment is not following the call.
The diagnostic may include checking thermostat signal, transformer output, low-voltage fuse, safety switches, float switch, door switch, board inputs, board outputs, relays, wiring, connected loads, contactor coil, blower circuit, visible heat damage, moisture, pest damage, and equipment model information. The diagnostic proves whether the board failed and why.
Maintenance
Maintenance can catch some control problems early
Maintenance can catch some control-board warning signs. Loose wiring, dirty cabinets, clogged drains, weak capacitors, worn contactors, water near controls, pest activity, and heat-damaged terminals may show up before the system fails completely.
In Phoenix-area systems, long run times and heat make electrical checks important. CTS can inspect visible wiring, safeties, drains, electrical parts, and system operation during maintenance. Those checks may involve contactors, capacitors, drain lines, water-leak symptoms, and hot electrical smells.
What Not To Do
What not to do when you suspect a control board problem
Do not keep replacing fuses without finding why they blow. Do not bypass safety switches to make the system run. Do not assume a blank thermostat means the thermostat is bad. Do not assume a burned board is the original cause. Do not move control wires around without knowing what each terminal does.
If the system is not responding, blowing fuses, smelling hot, or acting incorrectly, turn it off if needed and call for service. The control circuit should be tested before parts are replaced.
Electrical Safety
Control circuits should be tested before parts are replaced
Control boards connect low-voltage signals to equipment that may also involve high-voltage parts. Turn the system off and call for service if controls smell hot, fuses keep blowing, safeties are open, wiring is damaged, or the equipment is not following the thermostat call.
Common Calls
Control-board symptoms often start as no-start or blower calls
The reported symptom tells CTS where to start. The control board, thermostat, safeties, wiring, and connected equipment still need to be checked together.
Blank thermostat or no response
The issue may involve thermostat power, a blown low-voltage fuse, transformer, board input, float switch, or wiring problem.
Blower not following the call
The board may control blower timing, but the blower motor, relay, ECM module, capacitor, door switch, and wiring should be tested too.
Outdoor unit not starting
The cooling call may stop at the thermostat, board, safety switch, contactor coil, wiring, disconnect, or outdoor component.
Control Board Photos
HVAC control board and low-voltage examples
Photos help show why board diagnostics include fuses, relays, wiring, safeties, thermostat signals, and the outdoor-unit call.
Clean control board
The control board manages low-voltage signals, relays, safeties, blower operation, and equipment sequencing.

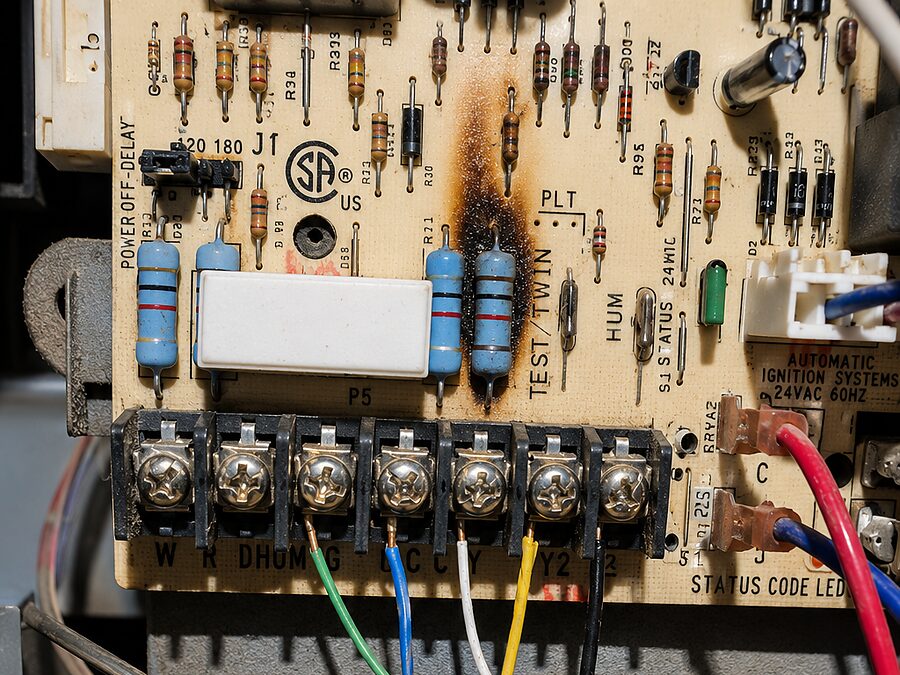

Burned control board
Burn damage may point to a board failure, but the connected circuit still needs to be checked.
Blown low-voltage fuse
A blown fuse usually has a cause, such as shorted wiring, a bad contactor coil, water, or a damaged control circuit.

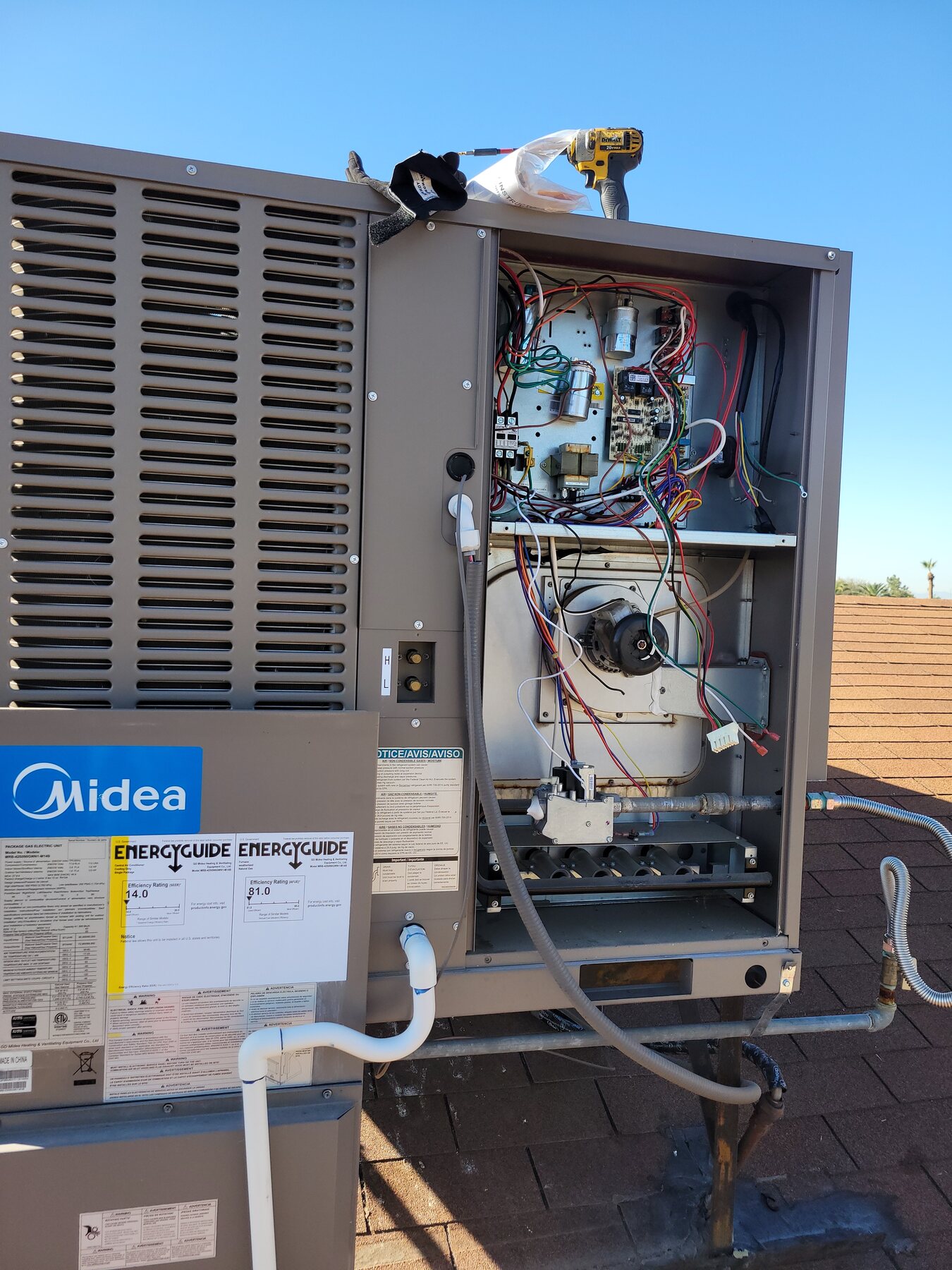

Thermostat and board wiring
Thermostat signals need to reach the board and then leave the board correctly.
Float switch or drain safety
A safety switch can stop the system even when the board is working correctly.

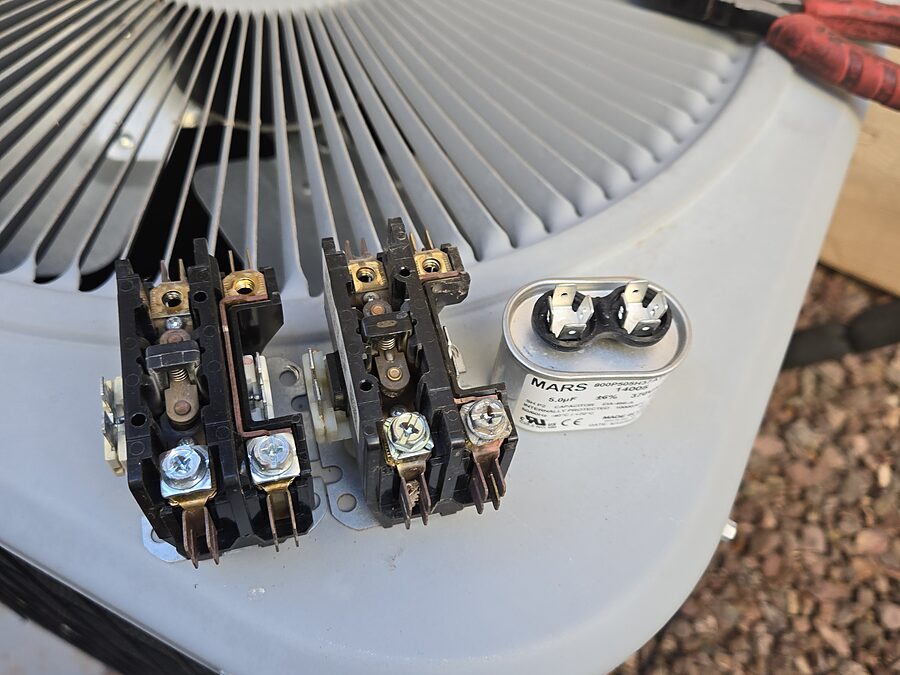

Contactor coil and outdoor signal
The board may need to send a cooling call to the outdoor contactor before the condenser can start.
Related Control Pages
Related control-board and no-start pages
Control-board issues connect thermostat signals, safeties, blower operation, outdoor-unit calls, drains, wiring, and electrical repair decisions.
HVAC components
A control board is one part of a larger electrical, airflow, and refrigerant system.
Thermostats
Thermostat signal problems can look like board problems until the control circuit is tested.
AC will not turn on
No-start diagnostics include thermostats, safeties, fuses, boards, contactors, wiring, and power.
Blower motors
Board outputs and blower relays can affect indoor airflow and fan timing.
Drain lines and pans
Float switches and drain safeties can stop the system when condensate water backs up.
Burning smell
Burned boards, relays, wiring, terminals, and hot electrical smells need careful testing.
HVAC control board FAQs
Answers about repair, replacement, maintenance, and service.
What does an HVAC control board do?
An HVAC control board coordinates signals between the thermostat, safeties, blower, outdoor unit, ignition or heat controls, and other components. It helps the equipment run in the correct sequence.
What are signs of a bad HVAC control board?
Possible signs include no blower, no outdoor-unit signal, intermittent operation, blown low-voltage fuse, burned board, failed relay, blank thermostat, or equipment that does not follow the call.
Can a thermostat problem look like a board problem?
Yes. Thermostat settings, thermostat power, wiring, low-voltage signals, safeties, and board inputs can overlap. CTS checks where the signal stops before replacing parts.
Why does the low-voltage fuse keep blowing?
A low-voltage fuse may blow because of shorted thermostat wire, damaged outdoor low-voltage wire, bad contactor coil, water at a float switch, pinched wire, board problem, or wiring mistake.
Can a float switch make it look like the board failed?
Yes. If a drain safety switch opens because water backed up, the system may stop responding even though the board is doing its job.
Can a control board cause the blower not to run?
Yes. The board may control blower timing or blower relay output. But a blower issue may also involve the motor, capacitor, ECM module, relay, door switch, thermostat signal, or wiring.
Can a control board keep the outdoor unit from starting?
Yes. The board may fail to send or pass the cooling call. But the thermostat, safeties, low-voltage wiring, contactor coil, disconnect, capacitor, and outdoor components should also be checked.
Does a burned board mean the board was the original problem?
Not always. A burned board can be the result of another failure, such as a shorted wire, failed load, water damage, pest damage, contactor coil issue, transformer problem, or voltage problem.
Should the cause be found before replacing a control board?
Yes. If the cause is not found, a new board can be damaged the same way.
Can maintenance prevent control board failures?
Not all of them. Maintenance can catch some warning signs, such as loose wiring, clogged drains, water near controls, worn contactors, weak capacitors, or heat-damaged terminals.
Can I replace a control board myself?
For safety, CTS recommends professional control-board replacement. Board replacement involves wiring, voltage checks, setup details, safeties, and equipment-specific requirements. The wrong board or wrong wiring can create new problems.
What should I tell CTS when calling about a possible control board problem?
Mention whether the thermostat is blank, the blower runs or does not run, the outdoor unit starts or does not start, fuses are blowing, the system short cycles, there is a burning smell, or the equipment is not following the thermostat call.
