2018 IMC Reference
Combustion Air and Venting for Furnaces and Water Heaters
A practical guide to gas furnaces, water heaters, combustion air, venting, shared closets, rooftop package units, replacement planning, and warning signs that should not be ignored.
2018 International Mechanical Code
Mechanical code references used on this topic
The 2018 International Mechanical Code organizes these topics across Chapter 7 for combustion air, Chapter 8 for chimneys and vents, Chapter 9 for specific appliances, and Chapter 10 for boilers, water heaters, and pressure vessels. Fuel-gas appliance requirements may also involve the International Fuel Gas Code.
Model code reference
References are based on the 2018 IMC, the mechanical code book used for Arizona HVAC contractor licensing study. Local adoption decides the enforceable version.
Manufacturer instructions
2018 IMC Section 304.1 ties equipment installation to approved equipment, listing, manufacturer instructions, and the code.
Local inspection
2018 IMC Chapter 1 covers administration, permits, inspections, and the code official role. Permitted work follows the local jurisdiction.
Gas Equipment Basics
Gas equipment requires combustion air and venting
A gas furnace, gas package unit, or gas water heater requires gas, electricity, combustion air, and a venting system that matches the appliance type, fuel, location, manufacturer instructions, and adopted local code.
When equipment is in a garage, closet, attic, mechanical room, rooftop unit, or shared space, the surrounding air and venting details matter. A replacement can change those details enough that the old setup should not be assumed correct.
- Combustion air is the air a fuel-burning appliance needs to burn safely.
- Venting carries combustion products out of the building or equipment cabinet.
- Manufacturer instructions and local code both matter for venting and clearances.
- Water heater and furnace closets can create shared-air and venting concerns.
- Soot, rollout, melted parts, unusual flame behavior, or carbon monoxide alarms should be treated seriously.

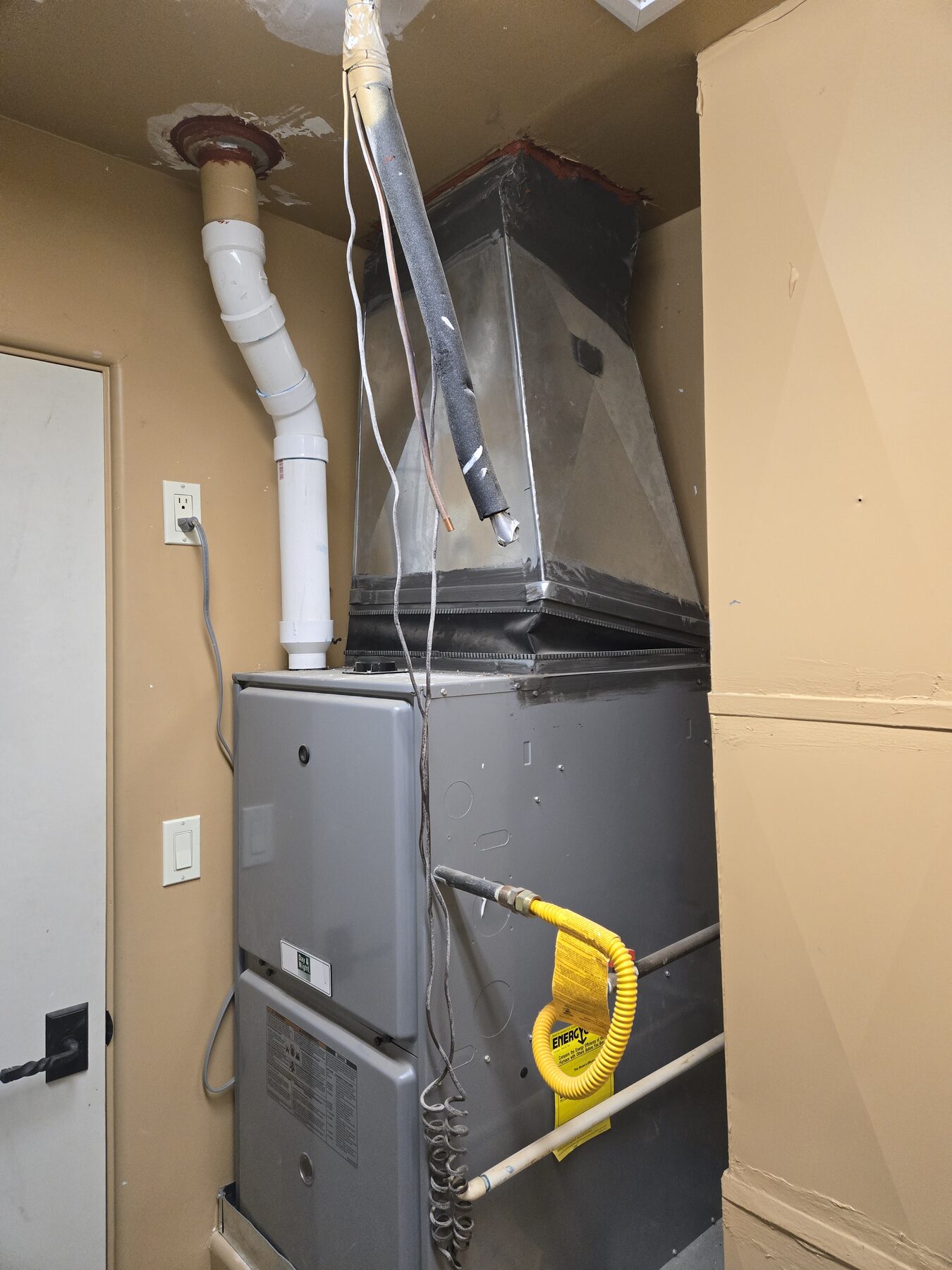

Combustion Air
Combustion air requirements
Combustion air is the air used by a gas appliance during combustion. If the appliance does not receive enough combustion air, flame quality, safety controls, venting behavior, and equipment operation can be affected.
The appliance, room, louvers or openings, enclosure size, direct-vent design, rooftop equipment, and local requirements all affect the combustion-air review. Gas equipment should be checked as a system before a failed part is replaced.
Venting
Venting matched to appliance type
A vent connector, chimney, flue, concentric vent, or direct-vent termination is not interchangeable between every appliance. Furnace efficiency, water heater type, draft behavior, material, slope, clearances, and termination location can all matter.

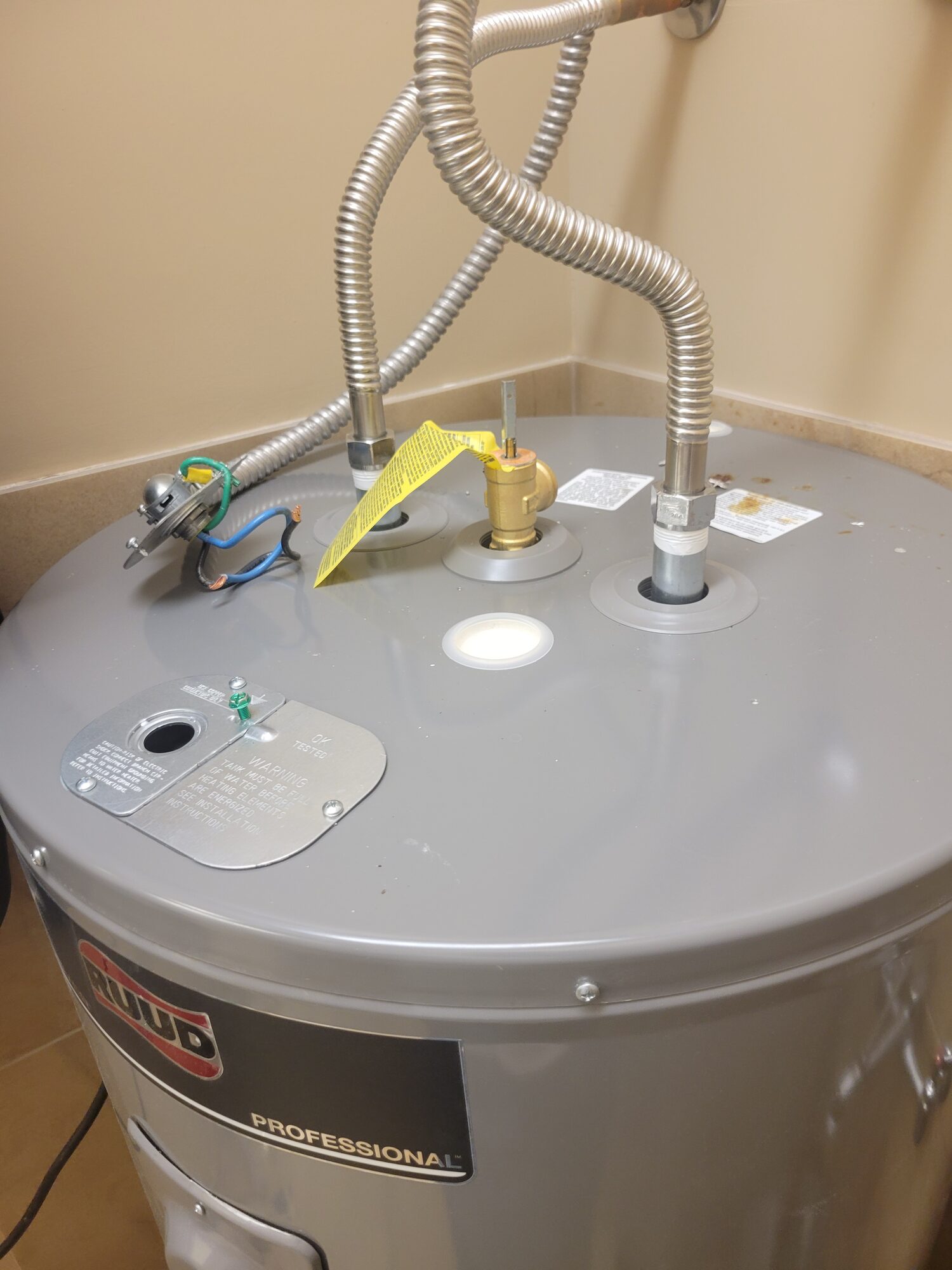

During heating service or water heater replacement, the vent path should be checked for obvious damage, wrong material, disconnection, corrosion, poor slope, blockage, or signs of overheating.

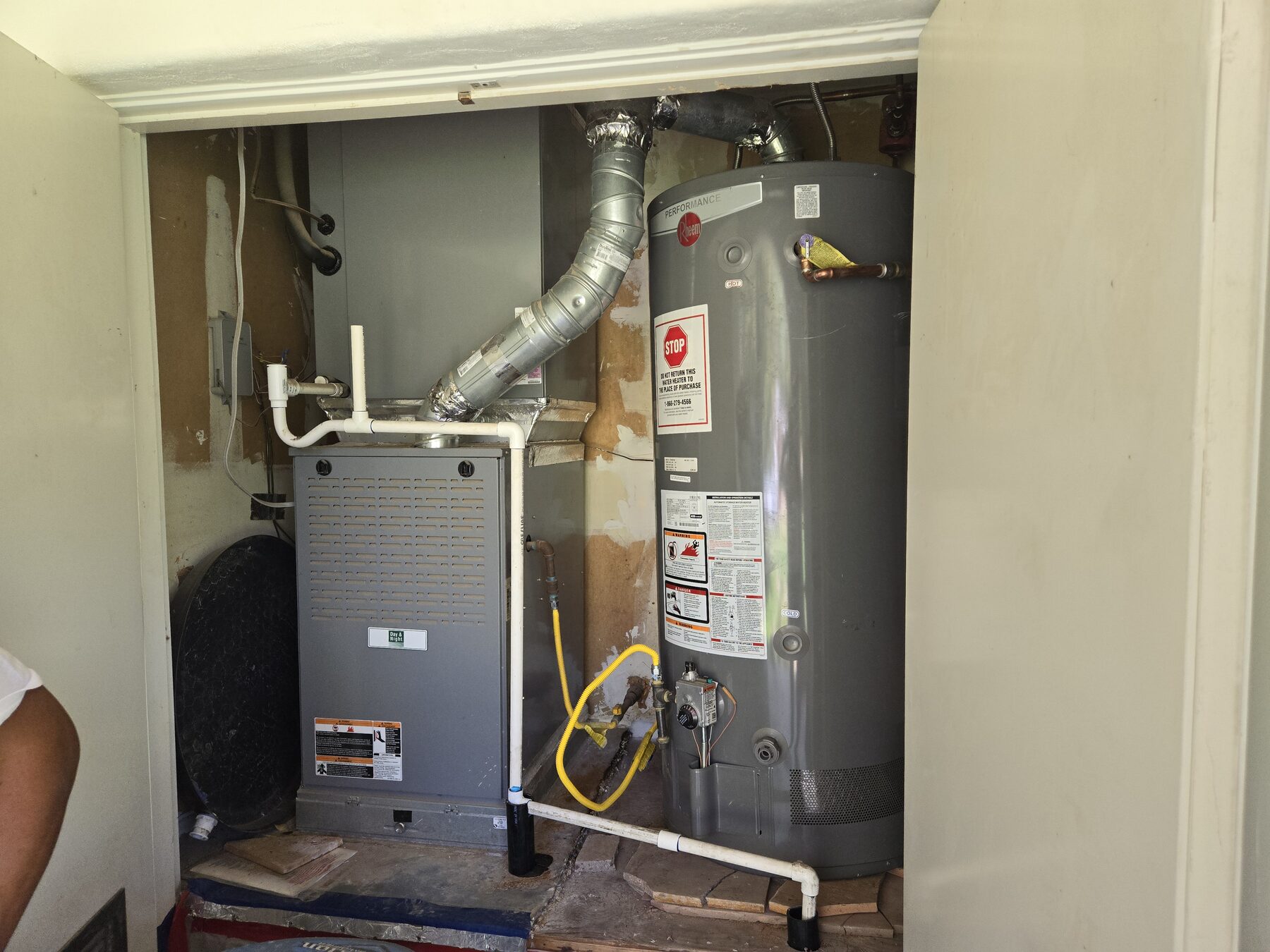

Shared Closets
Furnace and water heater closets
A common Phoenix-area setup is a furnace, air handler, and water heater sharing a closet, garage area, or mechanical space. If one appliance is replaced, access, combustion air, drain pan, venting, gas piping, and clearances around the other appliance may need to be reviewed.
The space has to work for the equipment installed in it. A cramped closet with poor air openings, blocked service access, or aging vent connections should be corrected when the job scope requires it.
Warning Signs
Safety signs on gas equipment
Soot, scorch marks, melted wiring, rollout signs, unusual flame behavior, repeated safety trips, gas odor, a carbon monoxide alarm, or a burning smell are safety concerns. The equipment should not be forced to run.
These signs may involve venting, combustion air, burner condition, heat exchanger concerns, blocked flue, gas pressure, controls, electrical parts, or surrounding equipment. The cause needs to be found before normal operation continues.
Replacement Planning
Replacement and venting review
A water heater replacement, furnace replacement, gas package-unit replacement, or equipment relocation can change venting and combustion-air requirements. The new appliance may not use the exact same venting path or air setup as the old one.
Replacement planning should include the appliance type, fuel type, location, access, vent route, clearances, nearby equipment, drain pans, electrical, and manufacturer instructions.
Related CTS Pages
Related service pages
Related service pages connect the reference topic to diagnostics, repair planning, and replacement decisions.
Heating service
Furnace, heat pump, gas package-unit, airflow, thermostat, burner, ignition, and seasonal heating service.
Water heaters
Water heater repair and replacement, including leaks, no hot water, venting, pans, valves, and access details.
Burning smell
Burning smells can involve electrical parts, motors, wiring, gas equipment, overheating, or unsafe operation.
Equipment access
Service clearance, access panels, attic equipment, rooftop units, closets, disconnects, and replacement planning.
Combustion air and venting FAQs
Answers about repair, replacement, maintenance, and service.
What is combustion air?
Combustion air is the air a fuel-burning appliance uses to burn gas safely. The right air path depends on the appliance, location, enclosure, and adopted local code.
Why does furnace or water heater venting matter?
Venting carries combustion products out of the building or equipment cabinet. Wrong, damaged, blocked, or poorly connected venting can create safety concerns.
Can replacing a water heater affect code details?
Yes. Replacement can bring up venting, pan, drain, expansion tank, shutoff valve, gas connection, combustion air, access, and clearance details.
What warning signs should not be ignored?
Soot, rollout signs, melted parts, gas odor, carbon monoxide alarms, unusual flame behavior, repeated safety trips, and burning smells should be checked quickly.
